Smart Craftsman | Zhouxiang Smart Welding Workstation

Aug 03, 2024

Zhouxiang Intelligent Welding Workstation

In modern construction and industrial fields, steel structures have been widely used due to their high strength, strong plasticity, fast construction speed, good seismic resistance and recyclability. The level and quality of welding technology directly determine the quality and performance of steel structures. Zhouxiang is well aware of the needs of the industry and insists on independent research and development to launch three teaching-free intelligent welding robot workstations for the steel structure industry: ground rail welding robot workstation, cantilever welding robot workstation, gantry welding robot workstation, which solves the pain points of traditional welding in the steel structure industry.

In steel structure welding, the following problems still exist: manual welding is inefficient and labor-intensive, which has always been the industry's shortcoming. The shortage of welding workers increases year by year, it is difficult to recruit workers and the labor cost is high. Although the welding efficiency of traditional welding robots has improved, many robots on the market are currently programmed using teaching, which has low programming efficiency and high requirements for professional skills. There are insufficient requirements for non-standard, small quantities and consistency, resulting in repeated teaching.

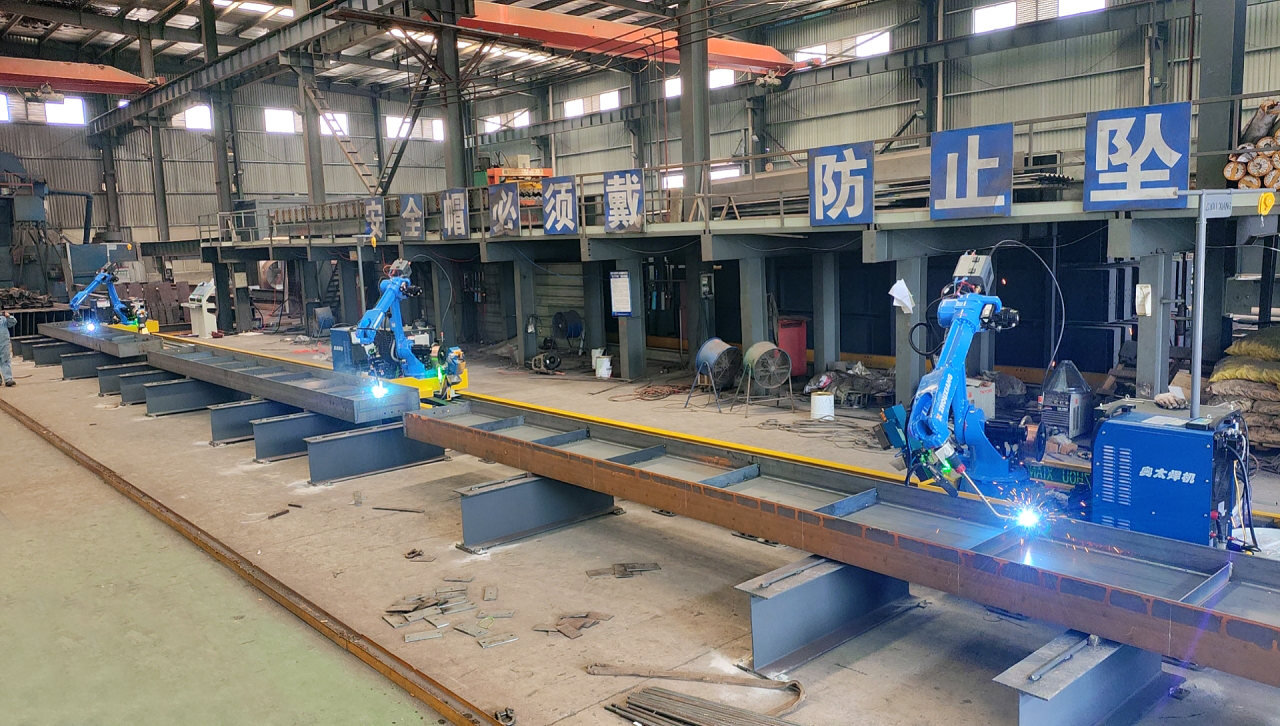

Zhouxiang rail-type welding robot workstation:

The A/B stations on both sides of the robot are arranged with tire frames, both of which are welding stations, which improves the utilization rate of the site space;
The robot can weld on both sides, reducing the waiting time for loading and improving the utilization rate of the equipment;
Two components can be arranged on one side of the robot, and two components can be scanned at the same time, and two components can be continuously welded, which improves the welding efficiency of the equipment.

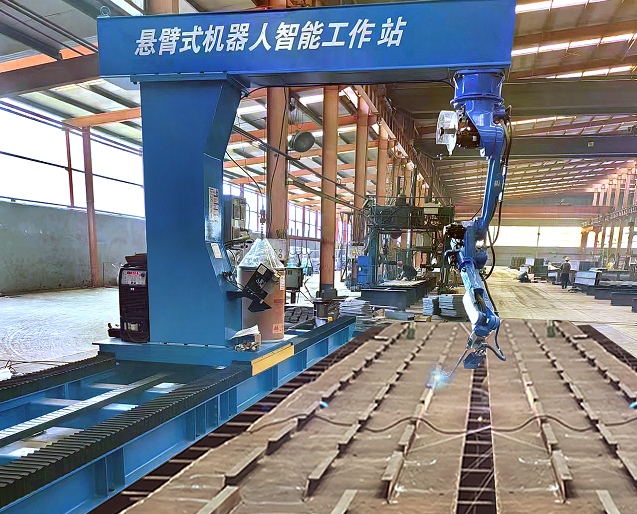

Zhouxiang cantilever welding robot workstation:

Can be configured with multiple external axes to achieve 7-axis, 8-axis, and 9-axis linkage;
Can weld products with large depth and wide range, and can adapt to most welding scenarios;
Suitable for bridge steel structure, shipbuilding, and heavy industry.

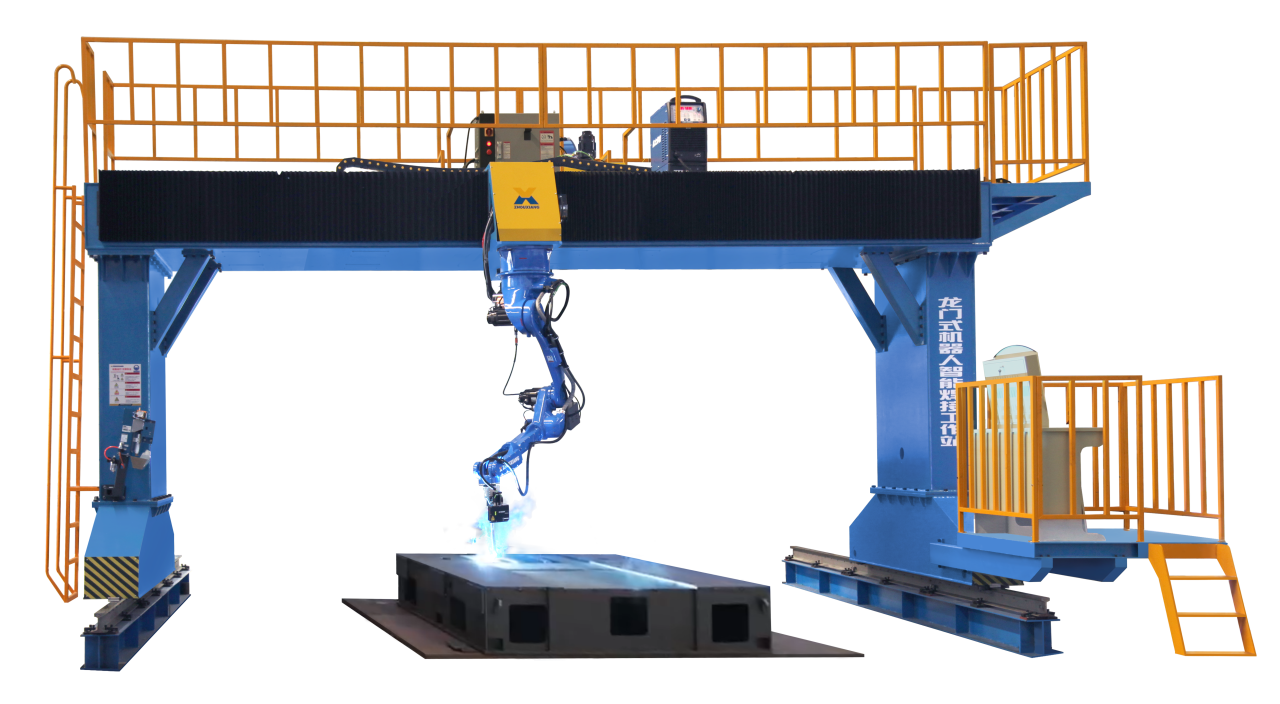

Zhouxiang gantry welding robot workstation:

The robot does not require teaching programming, and workers can learn to operate it in just a few minutes, without having to worry about the loss of professional operators;
Its unique gantry inverted mechanism ensures the stability of walking, allowing the robot to perform stably;
The ability to quickly achieve double-sided welding further improves efficiency;

Zhouxiang Enterprise

Specializes in the production of H-beam light and heavy steel production lines, box beam production lines, horizontal production lines, double-joint welding and straightening automatic lines, steel structure robot intelligent workstations, and various intelligent production lines; including CNC flame plasma cutting machines, fiber laser flatbed cutting machines, laser pipe cutting machines, tube-sheet integrated machines, handheld laser welding machines, H-beam assembly machines, gantry submerged arc welding machines, H-beam straightening machines, shot blasting machines, H-beam assembly welding and straightening integrated machines, welding special machines, auxiliary machines, etc.

Zhouxiang manufacturing, professional quality, high precision, high speed.

Leading technology, stable quality, products are sold well at home and abroad.
