Flame Cutting Machine
This series of cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive and combines CNC control, precision mechanism and oxygen cutting. This machine uses advanced CNC system from at home or abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect. CNC flame torch has auto height regulator and auto ignition functions, which is convenient for use.
1.Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.
2.CNC system: Beijing STARFIRE, Spanish FAGOR, American Hyperthermis optional.
3.The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.
4.The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft, therefore, the stability and accuracy during the whole moving can be assured.
5.The longitudinal guide rails are all made by high intensity track, all the contact surface of track have precision machining and accurate grinding racks are installed outside the guide way.
6.The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.

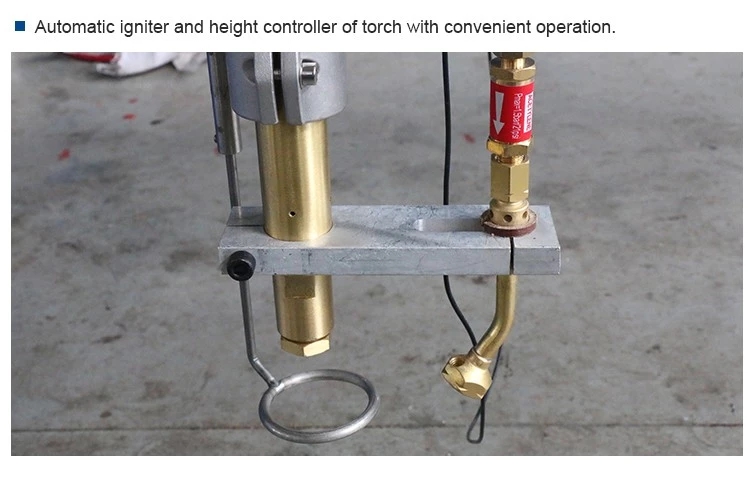

7.Automatic igniter and height controller of torch can be chosen according to customer’s requirement, with convenient operation.
8.There’s backfire arrester equipped on the torch which can prevent the safety hazards during cutting process.
.jpg)
Specifications:
|
CNC/GDZ-3000 |
CNC/GDZ-4000 |
CNC/GDZ-5000 |
|
|
Drive mode |
Double |
Double |
Double |
|
CNC cutting torch |
2 |
2 |
2 |
|
Straight cutting torch |
9 |
9 |
9 |
|
Rail Gauge |
3000 |
4000 |
5000 |
|
Effective cutting width (mm) |
220~2200 |
220~3200 |
220~4200 |
|
Rail Length (mm) |
|||
|
Cutting depth |
6~200 |
6~200 |
6~200 |
|
Oxygen, propane or acetylene or other cutting gas |
|||
|
Free running speed |
6000mm/min |
||
|
Cutting precision |
±0.5mm/mm |
||
|
Repeatability precision |
±0.5mm/mm |
||
|
Above are our standard model, it can be designed and manufactured according to customer’s request. |
|||
