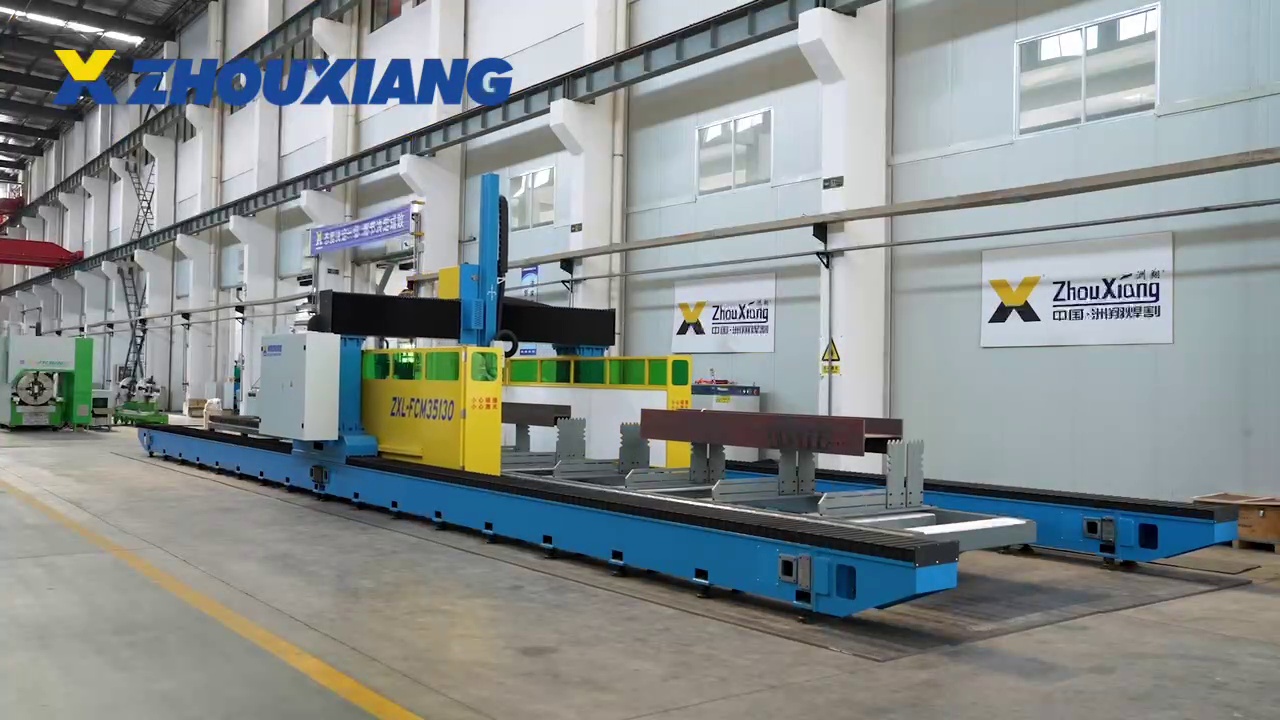

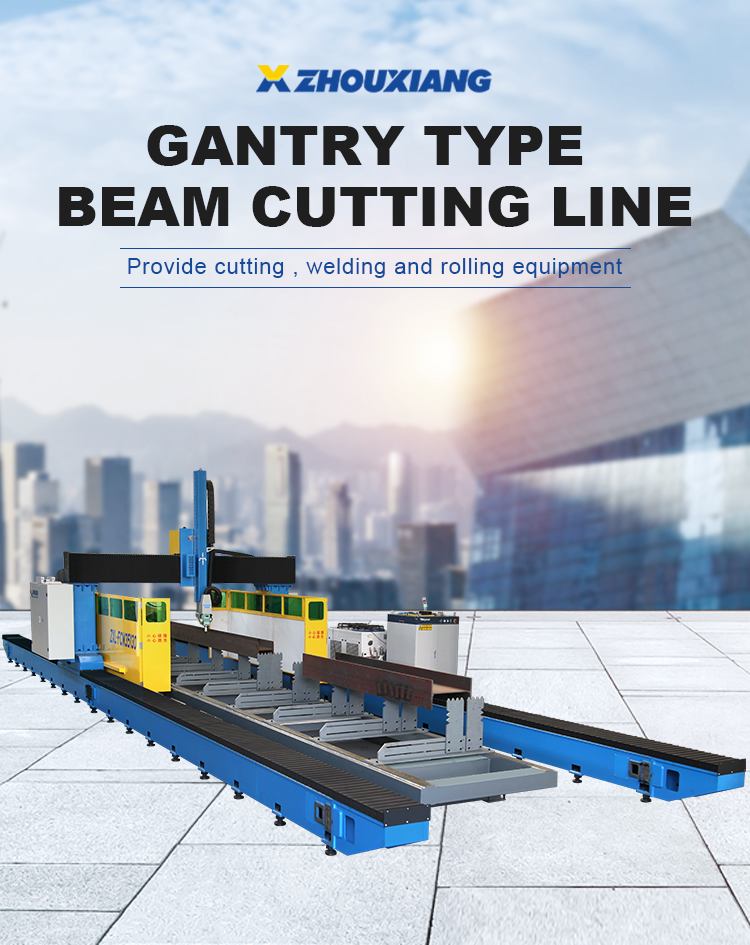

Gantry Beam Cutting Machine

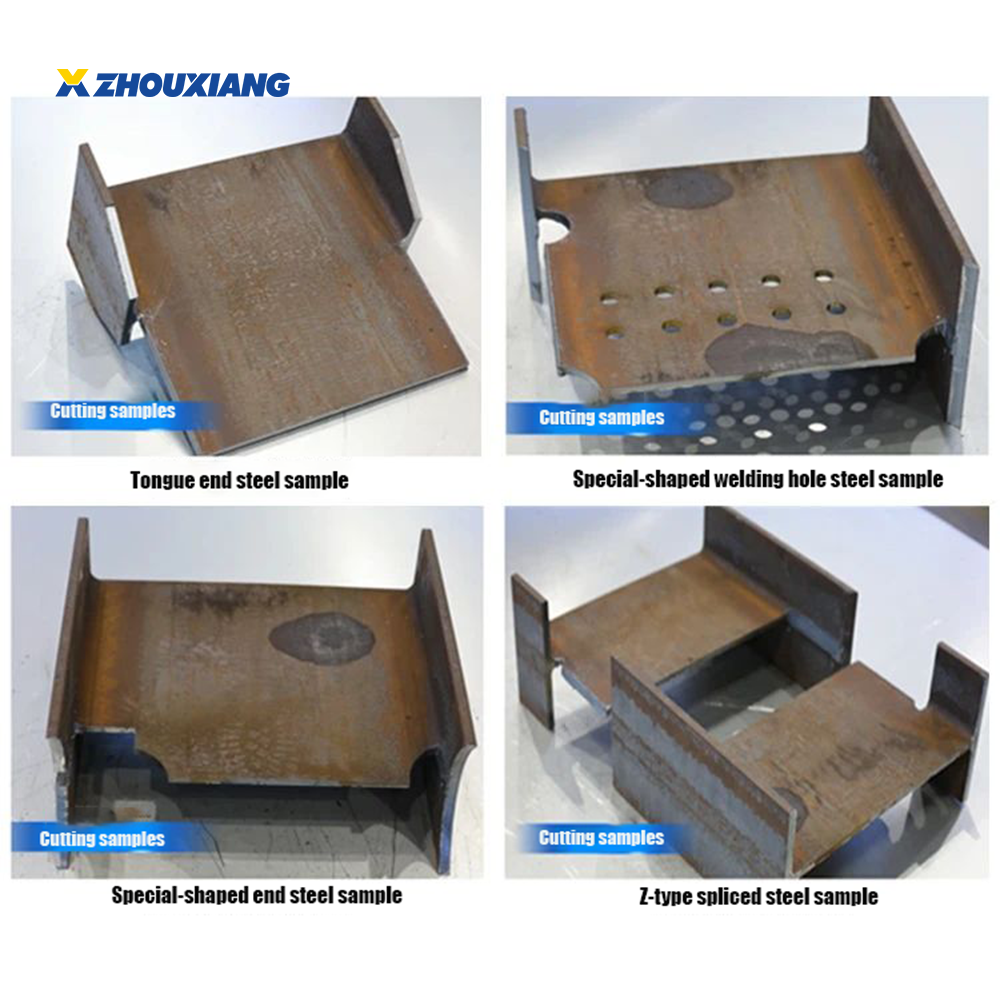

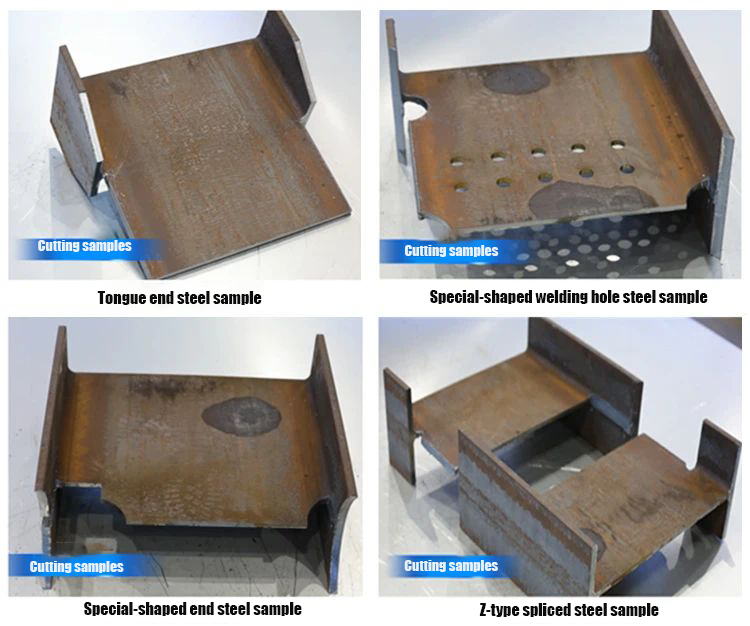

Steel cutting, cutting holes, engraving, marking, and threading on one machine;
The advanced Germany imported three-dimensional six-axis and five-link control system for secondary development.
Use laser measurement sensor to accurately measure, with fine hole cutting processes;
Support various collar forms of the slope cutting process;

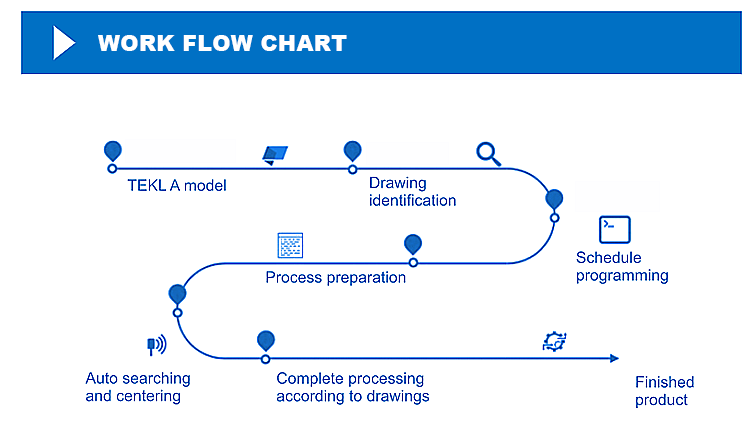

Support TEKLA steel structure three-dimensional model-building data file cutting.
The cut head of this product is the laser custom product(preface six laser cutting head ), which uses special customized components. It has automatic focus, real-time monitoring of APP, and coaxial spraying auxiliary gas cutting to ensure the best cutting quality.
Product Paramenters
|
ltem/ Model
|
ZX-FCM35240-20000W
|
|
Effective cutting range
|
3500×24000mm
|
|
X axis stroke
|
3500mm
|
|
Y axis stroke
|
24000mm
|
|
Z axis stroke
|
1000mm
|
|
H beam max cutting width
|
1200mm
|
|
H beam max cutting height
|
500mm
|
|
H beam max cutting length
|
24000mm
|
|
X axis positioning accuracy
|
±0.2mm
|
|
X/ Yaxis positioning accuracy
|
±0.05mm
|
|
X/Y/Z max speed
|
50m/ min
|
|
A axis swing angle
|
±90°
|
|
B axis swing angle
|
±90°
|
|
Maximum acceleration
|
0.5G
|
|
Phase
|
3
|
|
Power Specifications
|
380V/50HZ
|
|
Total power protection level
|
IP54
|
|
Laser power
|
20000W
|
Products Description
Steel cutting, cutting holes, engraving, marking, and threading on one machine;
The advanced Germany imported three-dimensional six-axis and five-link control system for secondary development.
Use laser measurement sensor to accurately measure, with fine hole cutting processes;
Support various collar forms of the slope cutting process;
Support TEKLA steel structure three-dimensional model-building data file cutting.
The cut head of this product is the laser custom product(preface six laser cutting head ), which uses special customized components. It has automatic focus, real-time monitoring of APP, and coaxial spraying auxiliary gas cutting to ensure the best cutting quality.

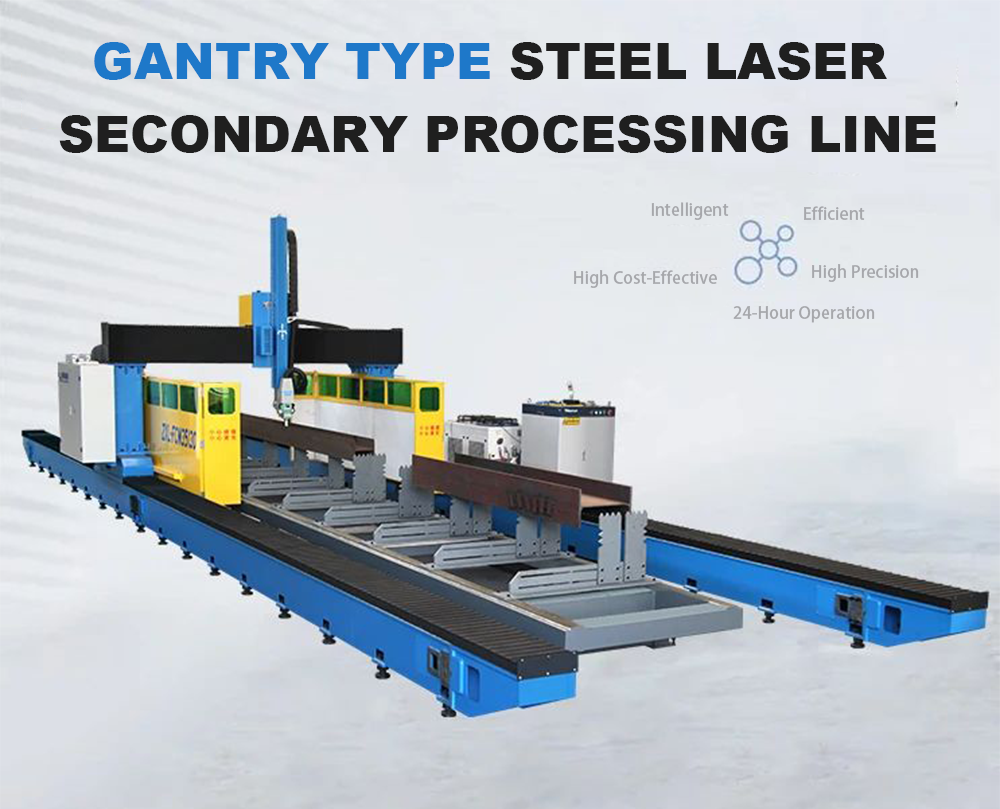

Gantry type advantage
The bilateral gear rack is more extended, and the cutting surface can be larger, thereby meeting the personalized needs of customers' large type work-piece;
Parameter Performance
Cutting torch: Suzhou Porad
Cutting software and nesting software: Wisdom
Cooling system: Hanli
Main machine: Zhouxiang
Parameter performance
