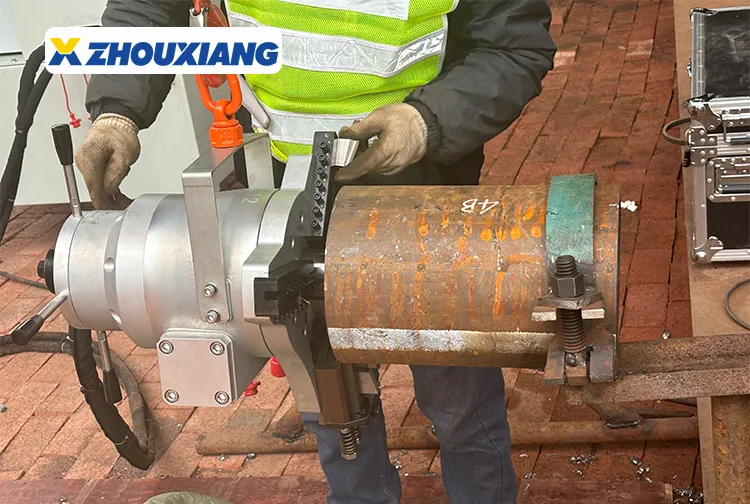

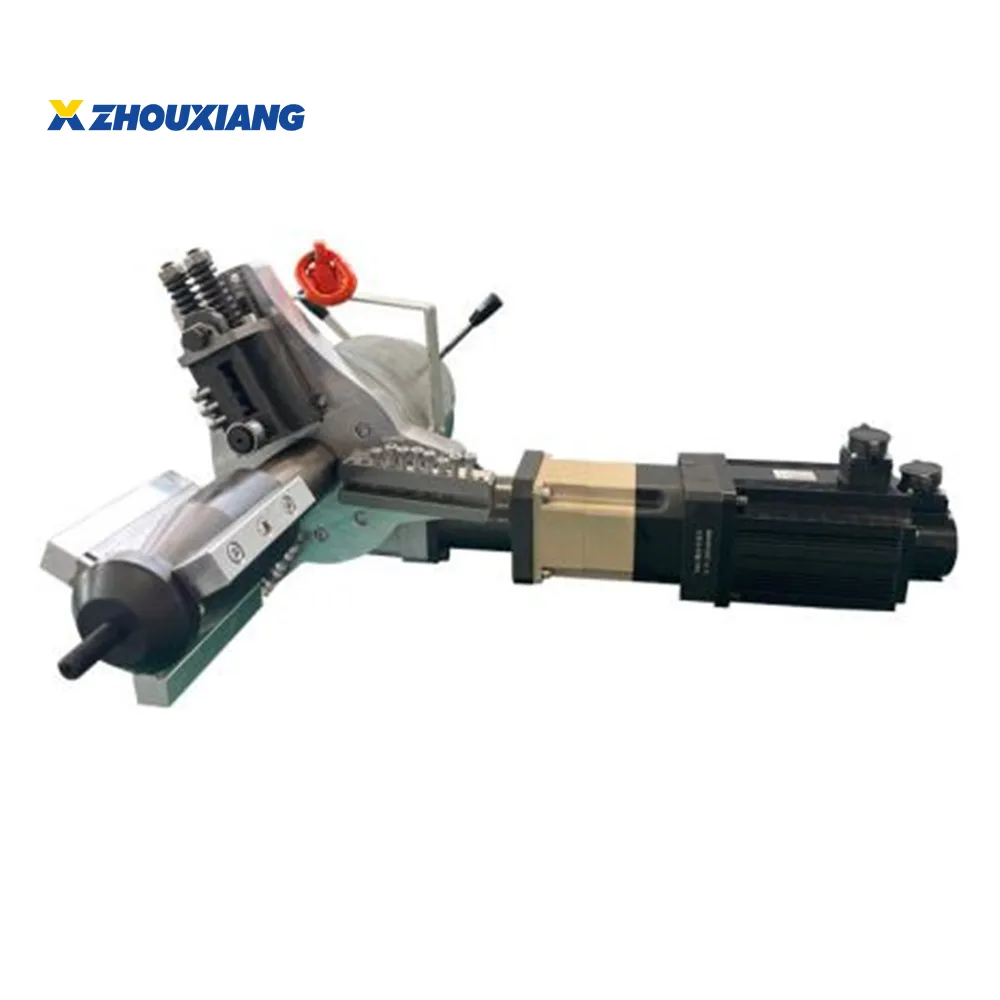

Pipe-End Beveling Machine
The JTD series is a professional pipe-end beveling machine widely used in petroleum, chemical, natural gas, boiler, nuclear power, pharmaceutical, plant construction, and pipeline engineering.It features a high-strength all-aluminum body, combining light weight with excellent rigidity.It offers a wide processing range and outstanding performance for heavy-wall pipes.Equipped with three tool positions, it supports compound beveling and internal boring; power options include hydraulic or variable-frequency electric drive.
High-strength all-aluminum body for reduced weight.
Robust machine design ensures high rigidity.
Three tool positions paired with a high-power motor allow for one-pass compound beveling.
Large processing range with superior performance on thick-walled pipelines.
Self-centering expansion mechanism ensures easy installation and highly reliable fastening.
Includes a tracking tool holder for high-precision, high-quality U-shaped complex beveling on bimetallic composite pipes.
Selectable drive sources: Electric or Hydraulic.
Low-speed, high-feed design ensures cutting efficiency.
Electric: 220V, 2.1kW; Hydraulic: 380V, 7.5kW.
Widely used in petroleum, chemical, natural gas, boiler, nuclear power, plant line construction, pipeline engineering, etc.

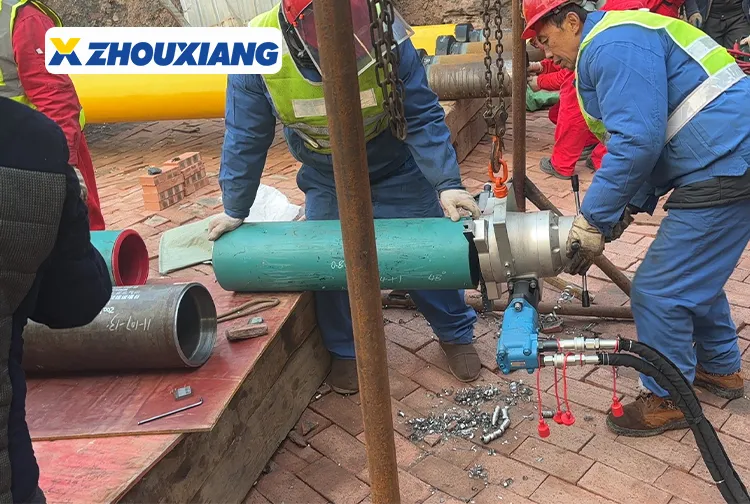

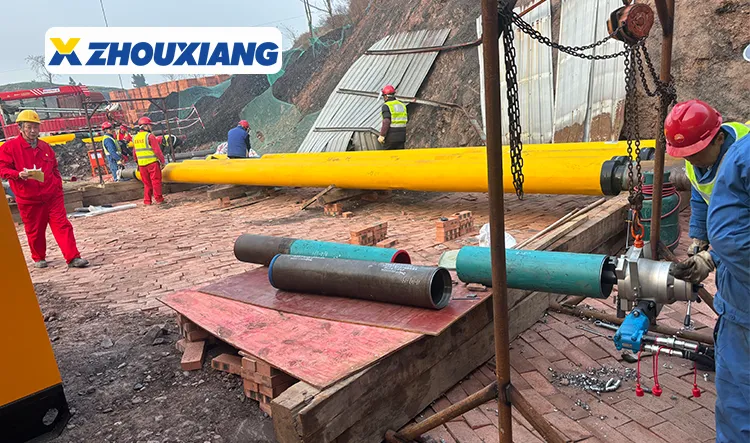

The products have been successfully applied in composite pipe projects constructed by Sichuan Oil Construction, China Petroleum First Construction, Daqing Oil Construction, and Dagang Oil Construction, etc., with high construction efficiency and high recognition from the project units.
|
Model |
Processing Range(mm) |
Bevel Wall Thickness(mm) |
|
JTD-12 |
114~325 |
≤25 |
|
JTD-24 |
273～610 |
≤40 |
|
JTD-32 |
355～813 |
≤33 |
|
JTD-40 |
711～1016 |
≤33 |
