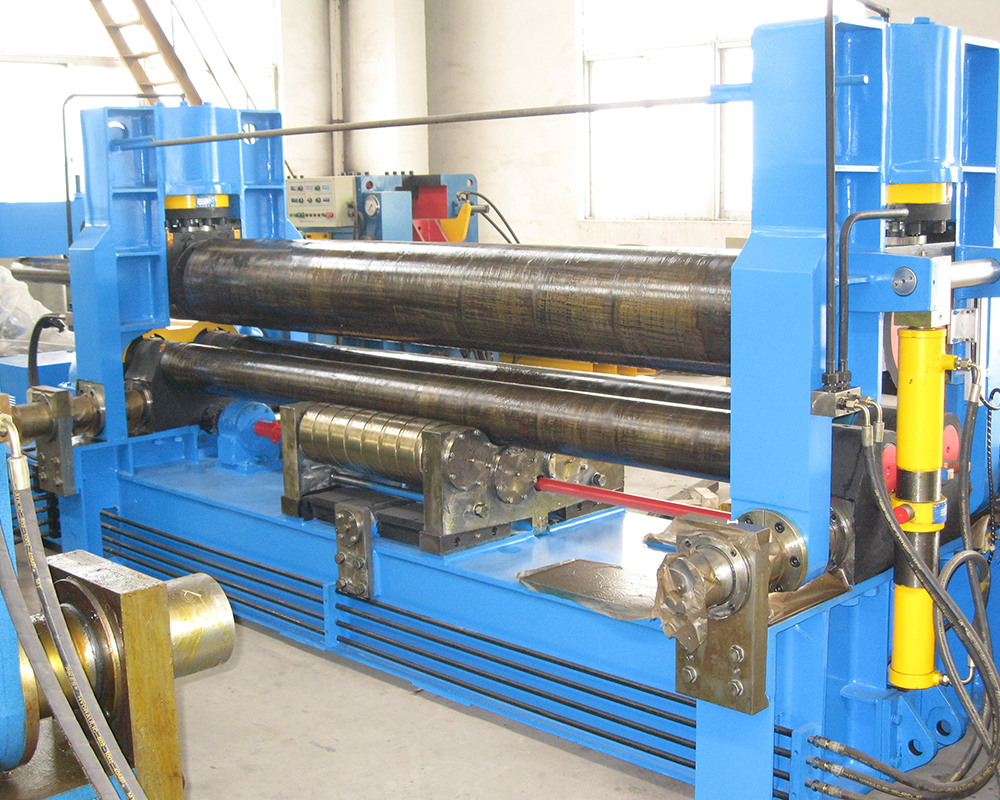

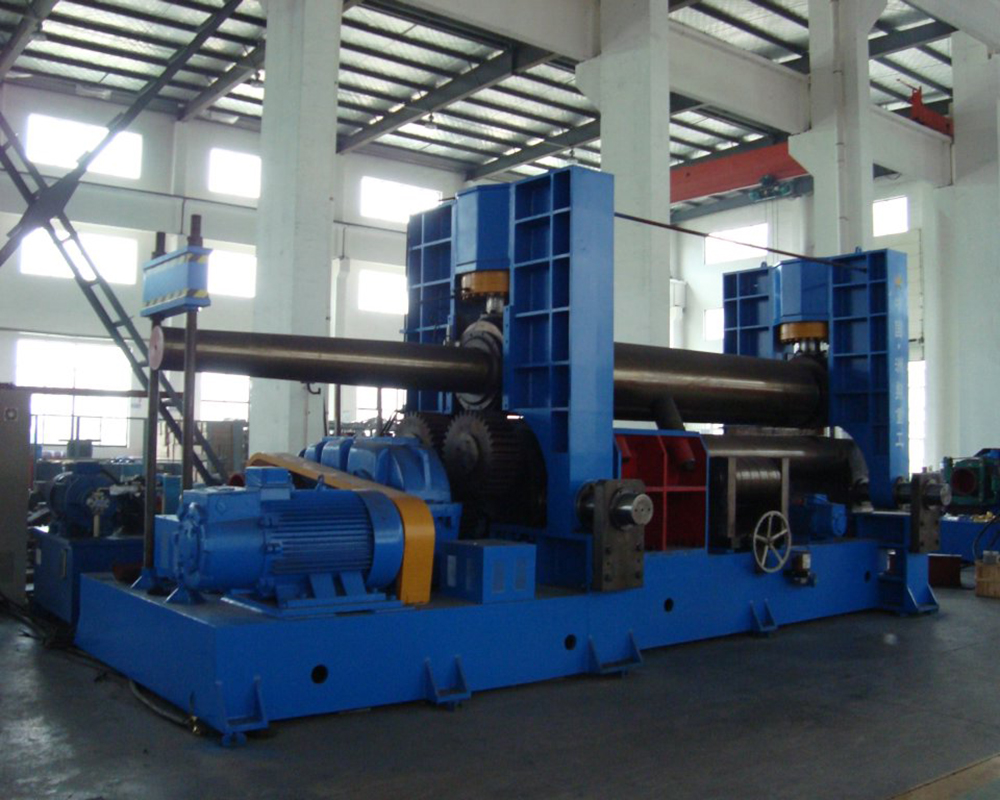

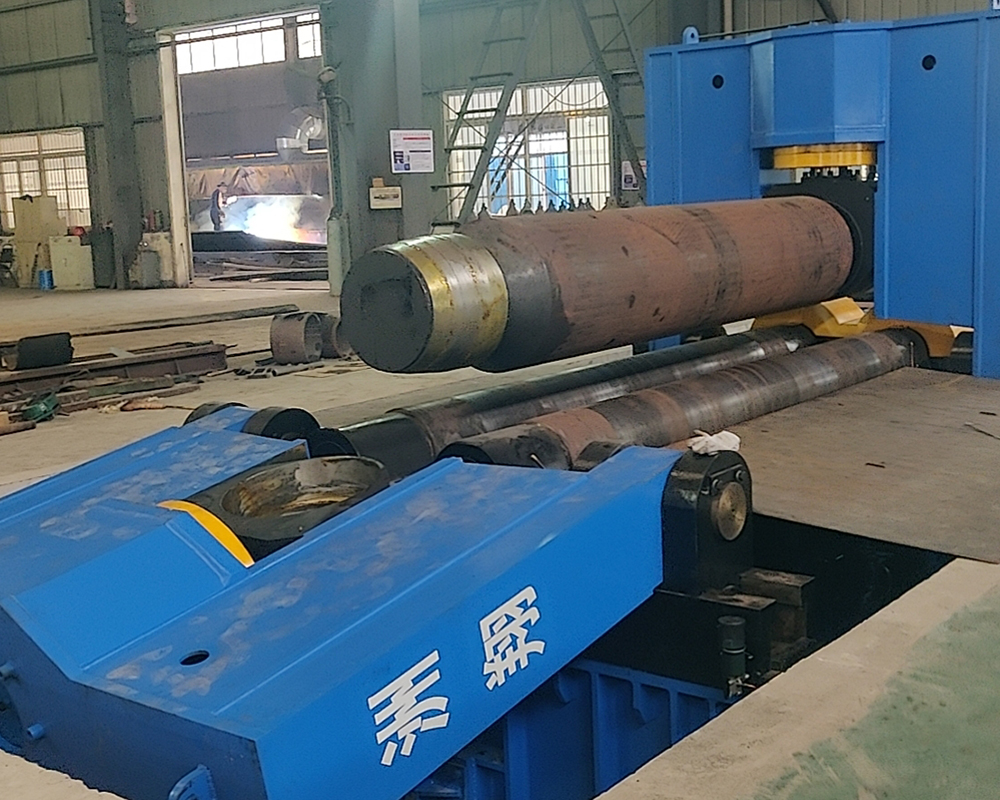

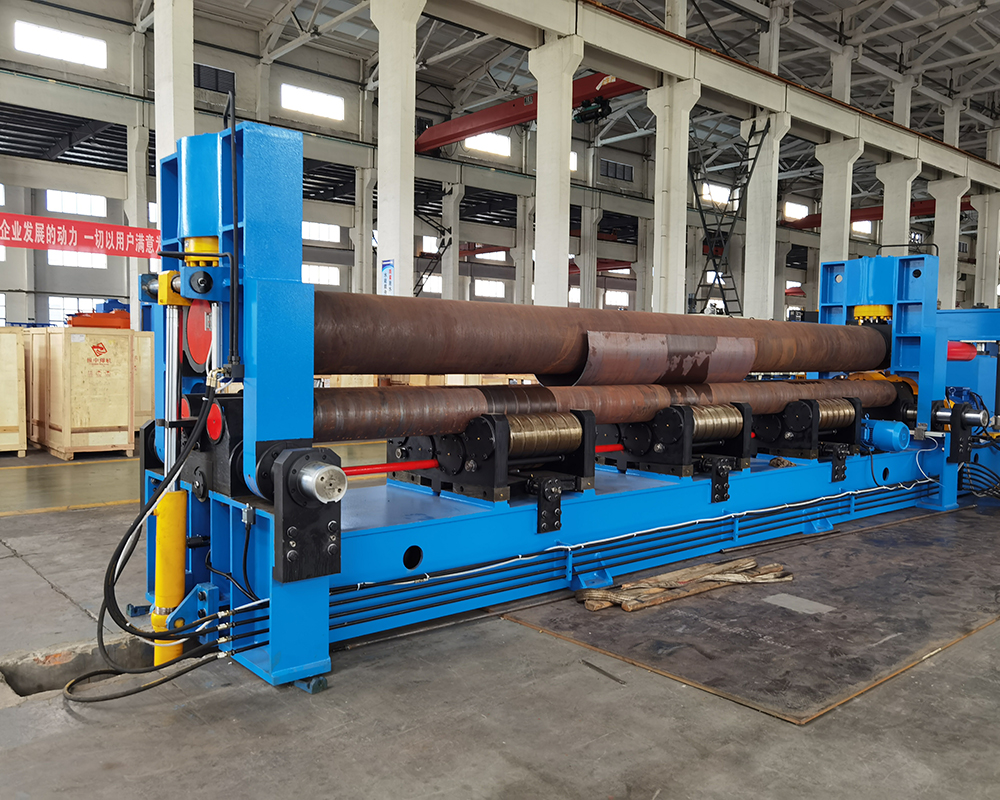

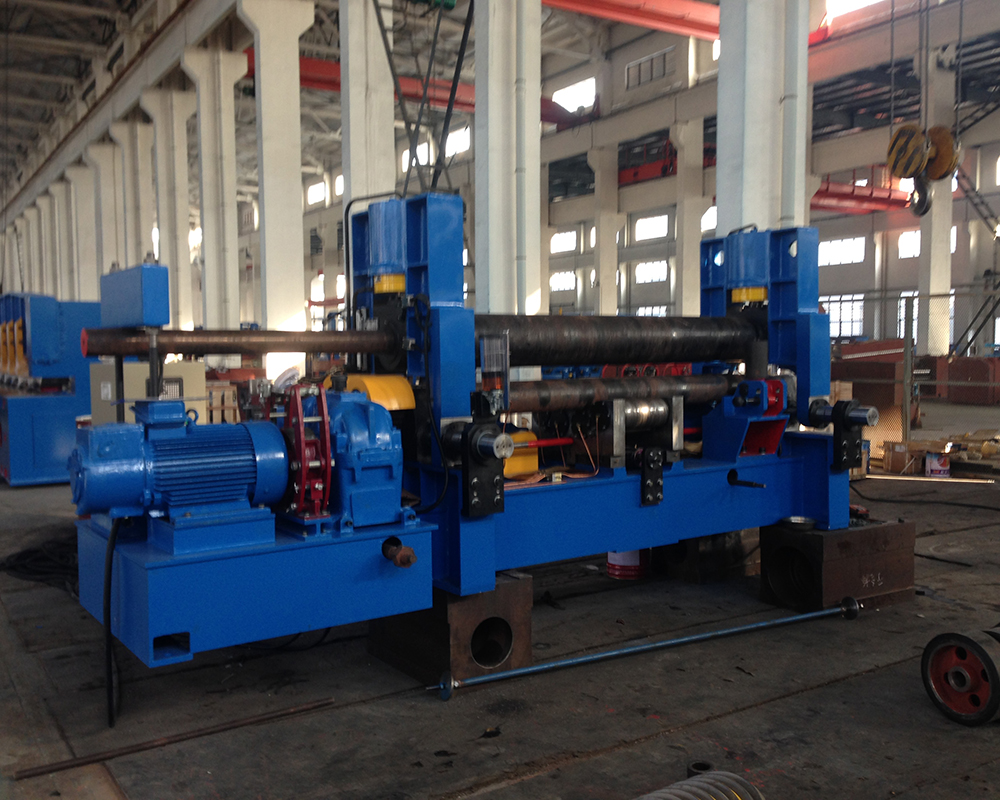

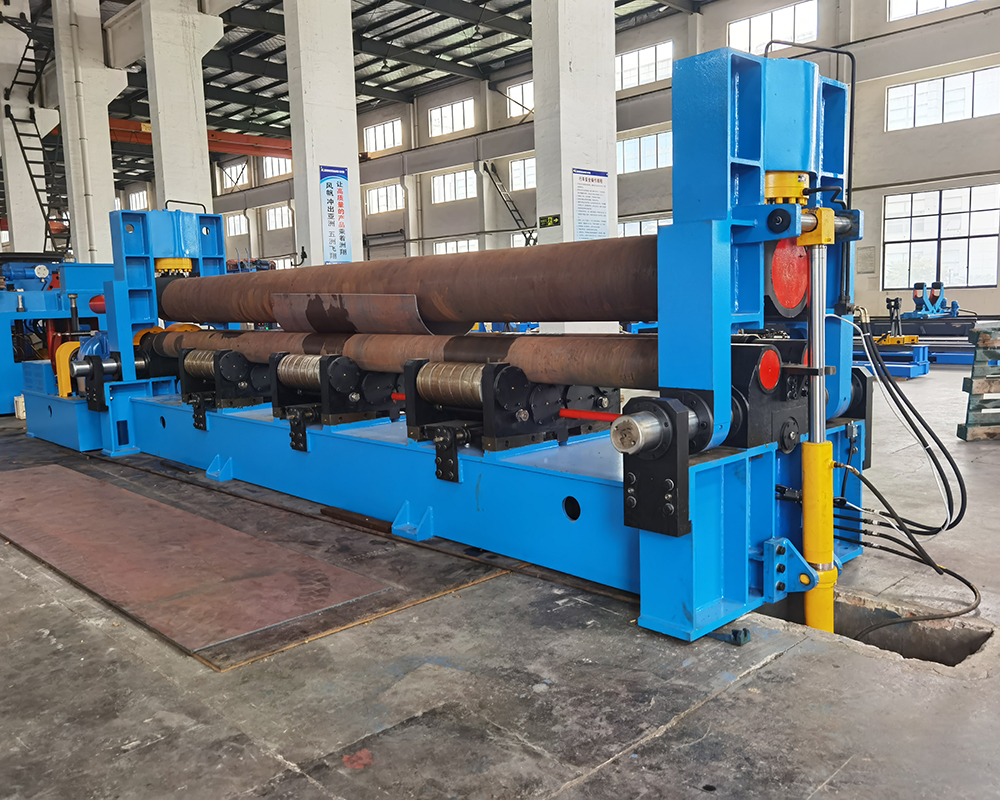

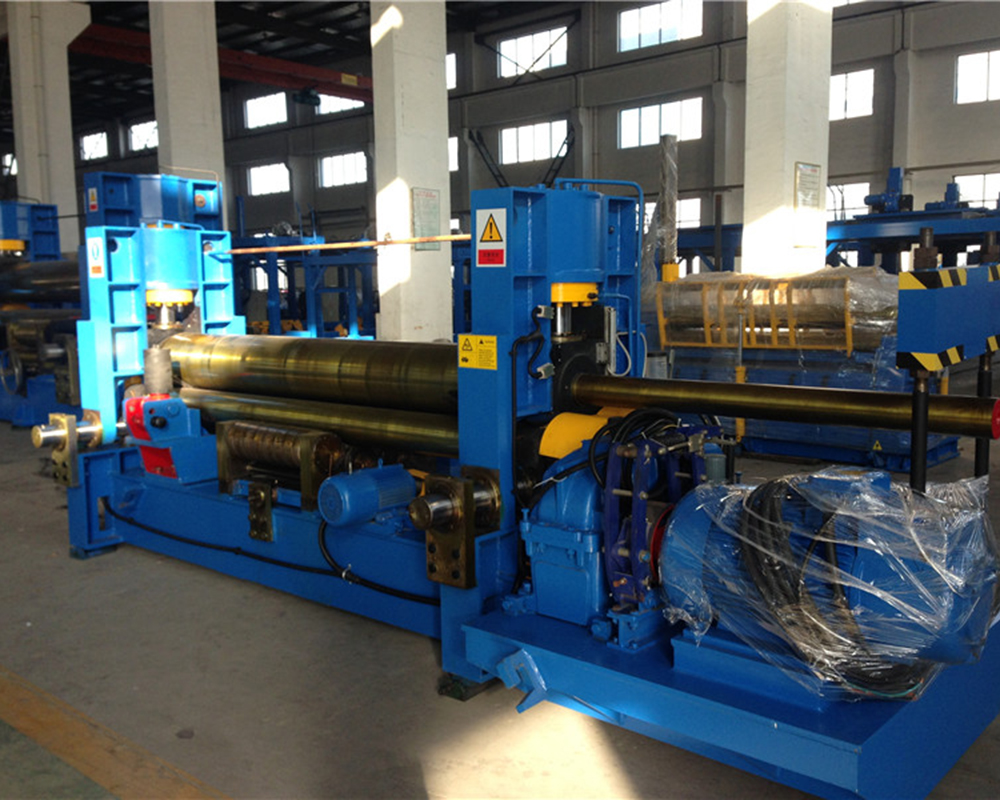

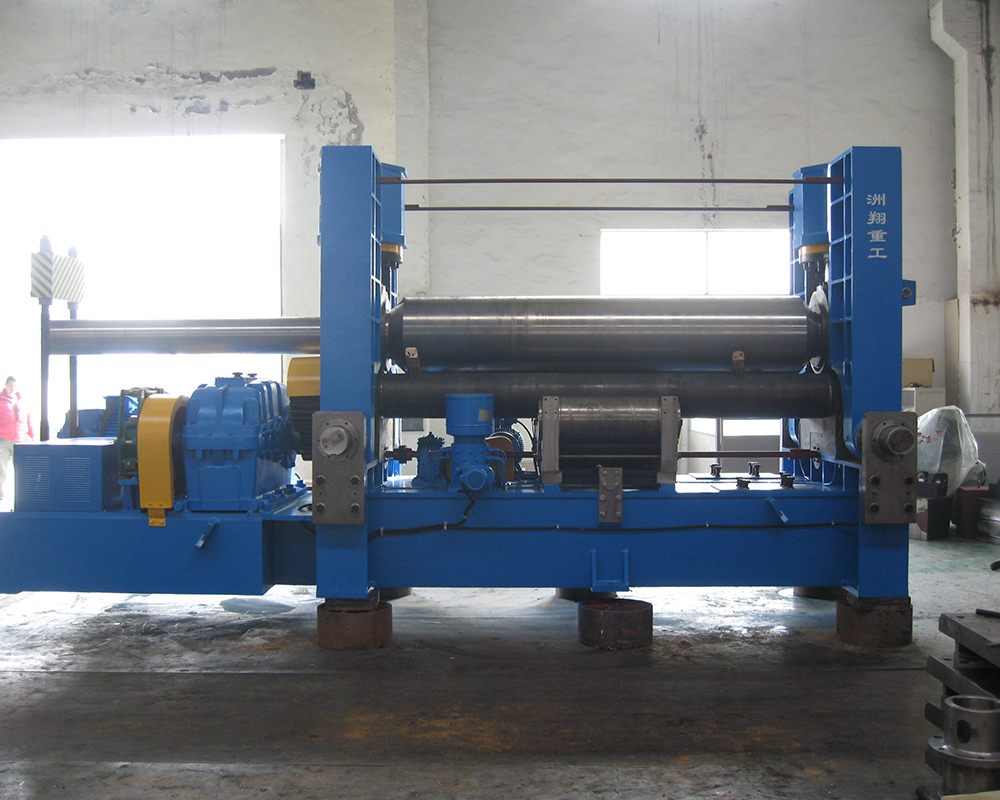

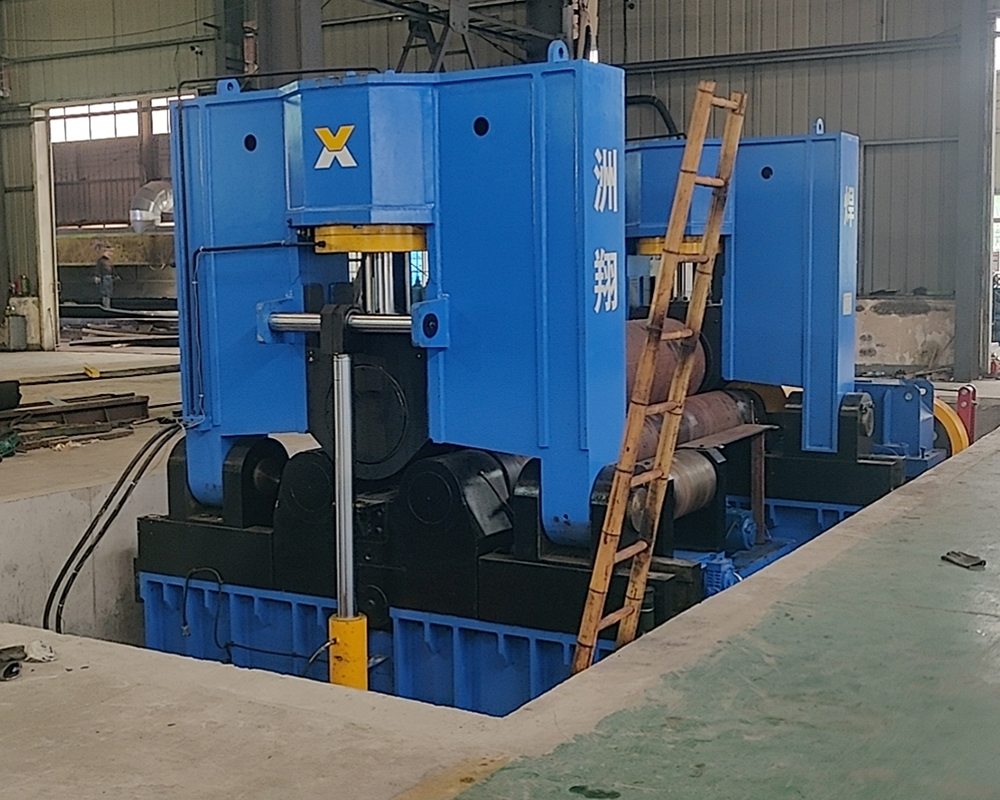

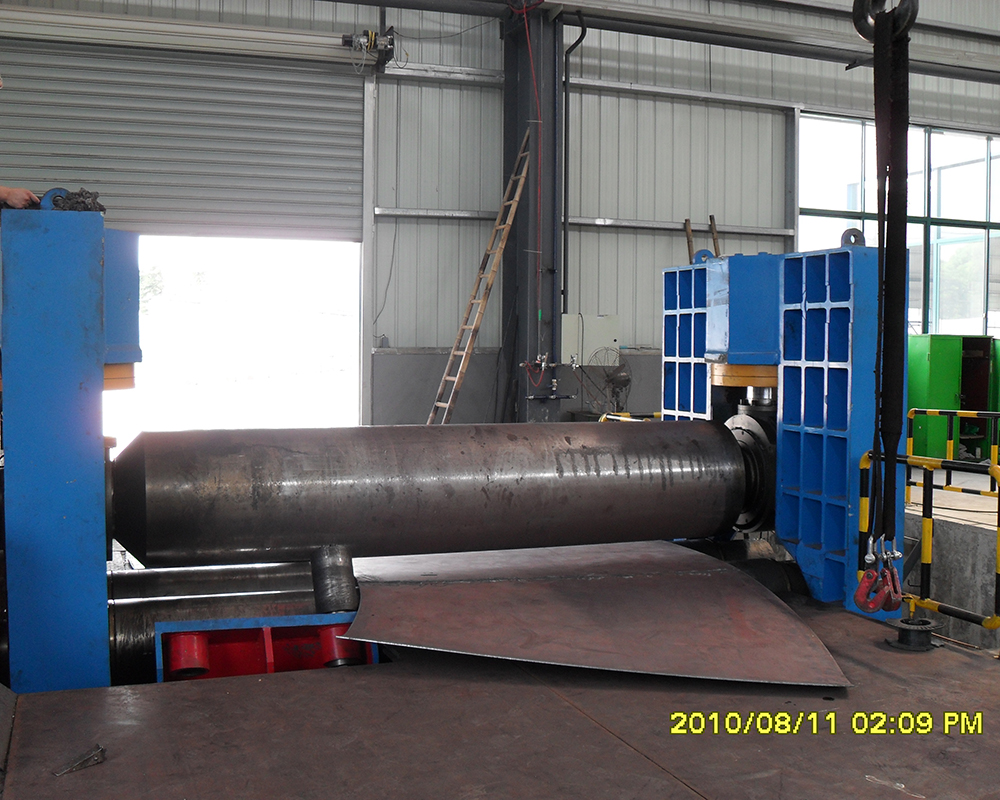

Multi-function 3-Roller Rolling Machine
This arc down-adjusting NC digital display three-roller machine is specially used for profile bending. It can bend round and arc shape work-piece, and is widely used in oil, chemistry, ship-building , water and electricity, metal structure and machine making industry.
1.Main body of this machine is steel plate welding structure, annealing post welding to eliminate the internal stress of welding, which can ensure good rigidity and capacity to resist distortion and long time work under full load.
2.This equipment is full hydraulic driving, has the features of compact structure, high reliability and smooth movement.
3.All three roller driving, it can finish prebending and rolling at one time without discharging the workpiece, with high working efficiency.
4.Digital display, the lifting stroke of oil cylinder can be showed directly on the screw of the panel with convenient using and easy operation.
5.Economical and practical, it can finish bending different profiles only by changing mould, can be used in wide range.
Specifications:
|
Model |
Max thickness (mm) |
Max width (mm) |
Yield limit (MPa) |
Min bending Dia. (mm) |
Rolling speed (m/min) |
Main motor power (Kw) |
|
W11SNC-15×2000 |
15 |
2000 |
245 |
600 |
4 |
7.5 |
|
W11SNC-20×2000 |
20 |
2000 |
245 |
800 |
4 |
15 |
|
W11SNC-20×2500 |
20 |
2500 |
245 |
800 |
4 |
15 |
|
W11SNC-20×3000 |
20 |
3000 |
245 |
800 |
4 |
22 |
|
W11SNC-25×2500 |
25 |
2500 |
245 |
900 |
4 |
22 |
|
W11SNC-25×4000 |
25 |
4000 |
245 |
1400 |
4 |
30 |
|
W11SNC-30×2500 |
30 |
2500 |
245 |
1100 |
4 |
30 |
|
W11SNC-30×3000 |
30 |
3000 |
245 |
1200 |
4 |
37 |
|
W11SNC-30×4000 |
30 |
4000 |
245 |
1400 |
4 |
45 |
|
W11SNC-40×2500 |
40 |
2500 |
245 |
1400 |
4 |
55 |
|
W11SHNC-40×3000 |
40 |
3000 |
245 |
1600 |
4 |
55 |
|
Above are our standard model, |
||||||
