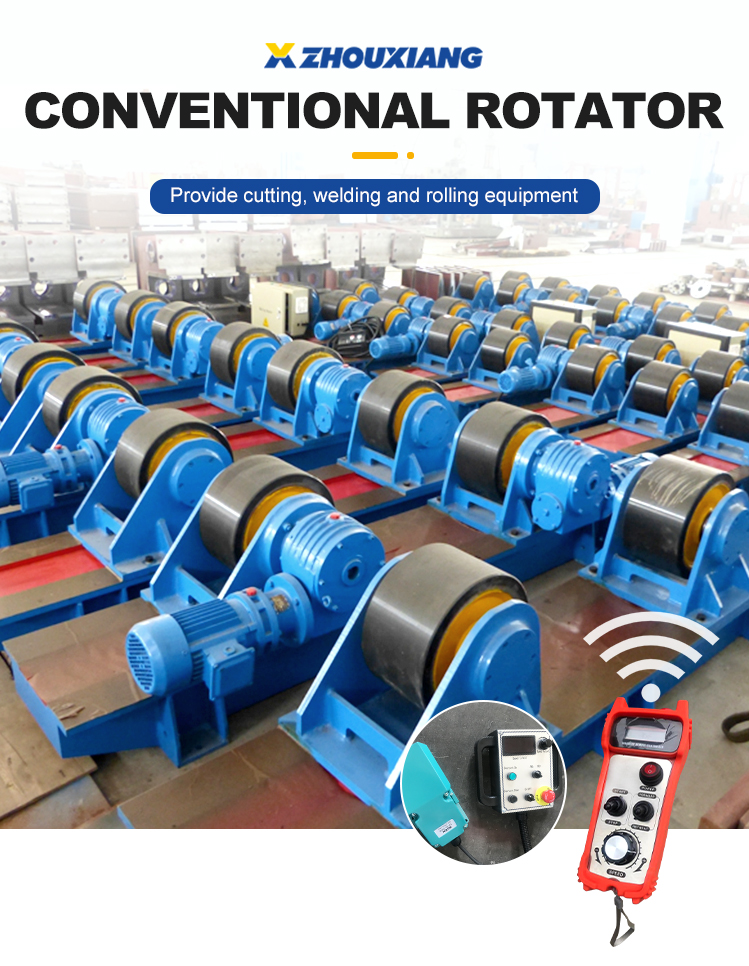

Conventional Welding Rotator GLHK

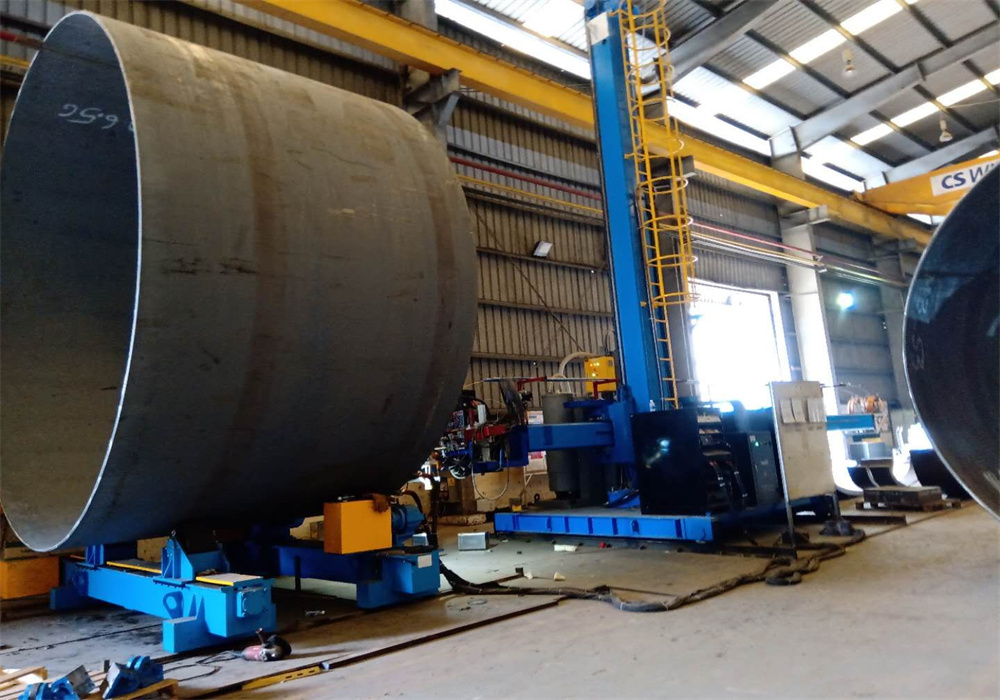

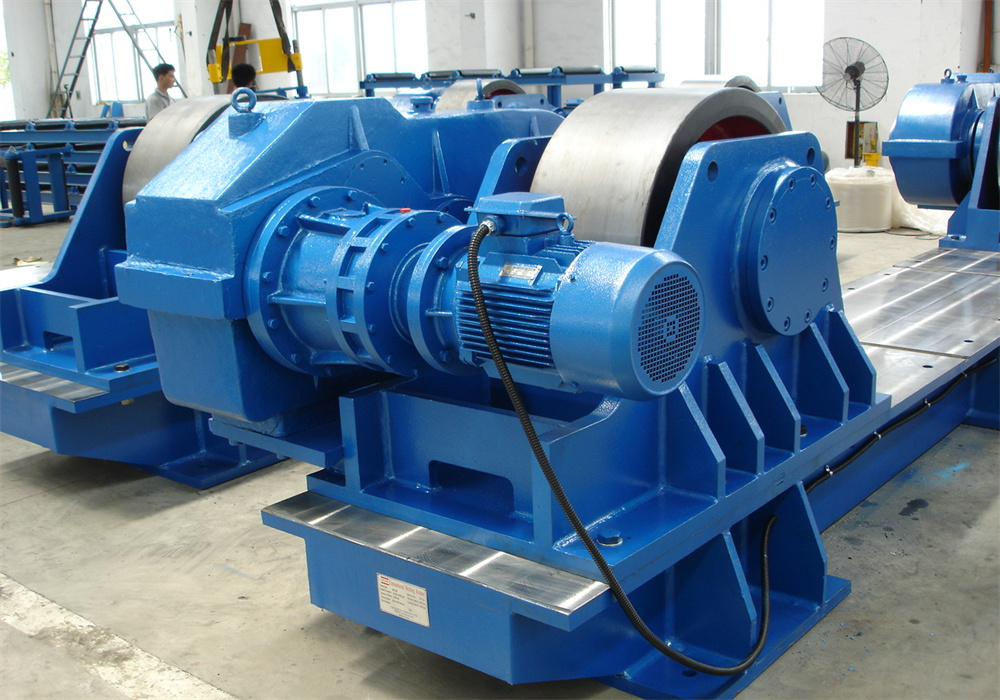

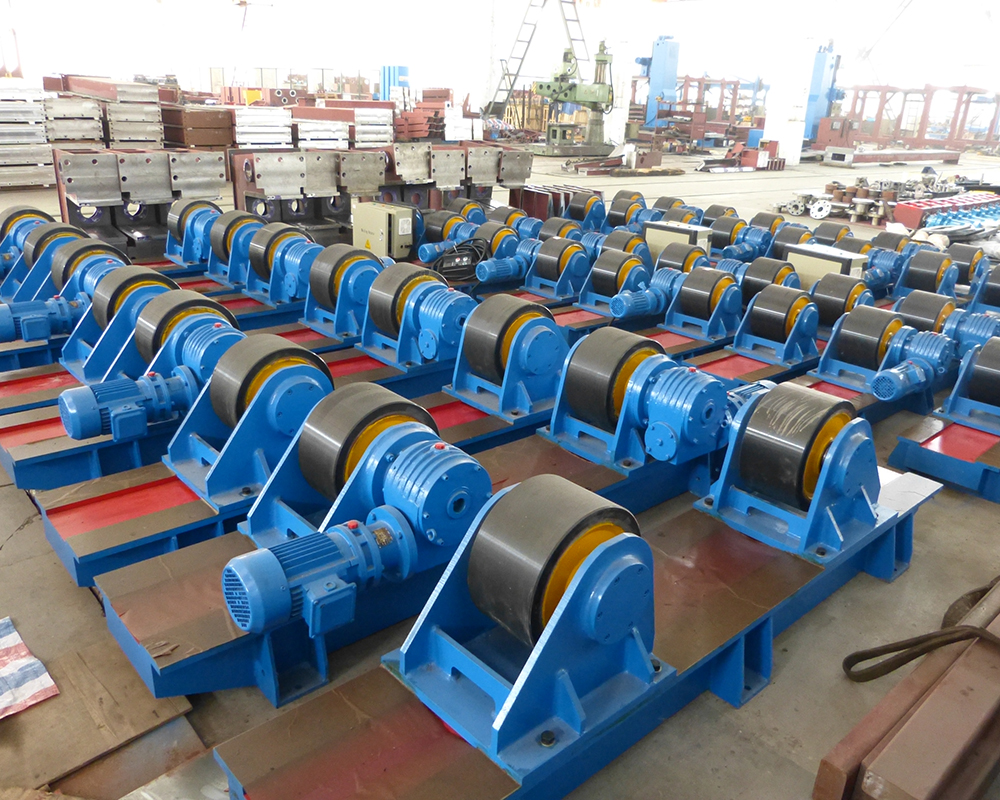

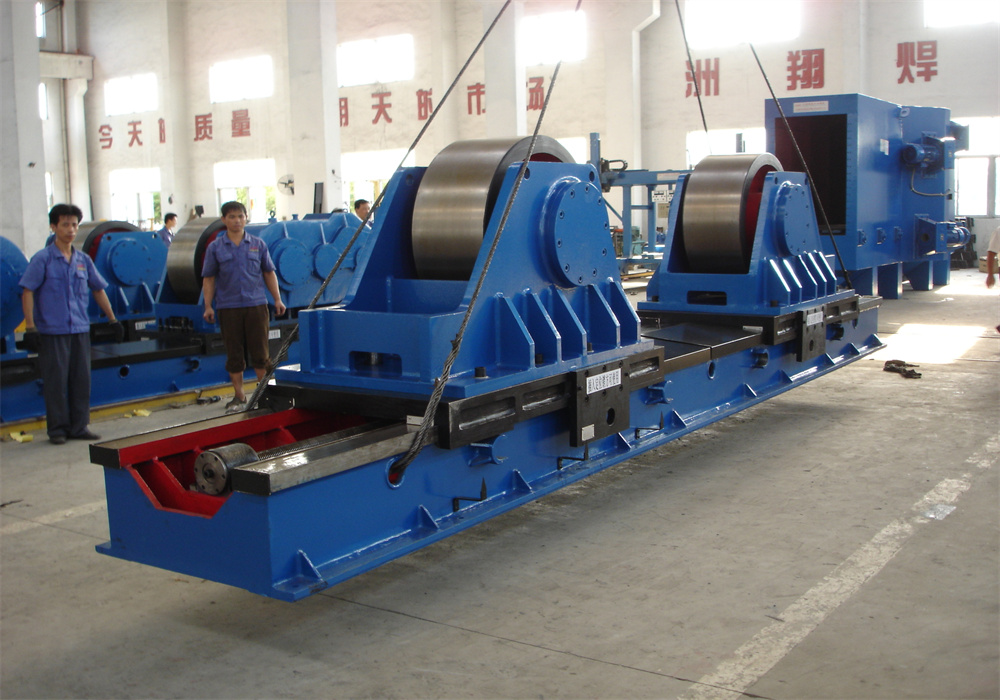

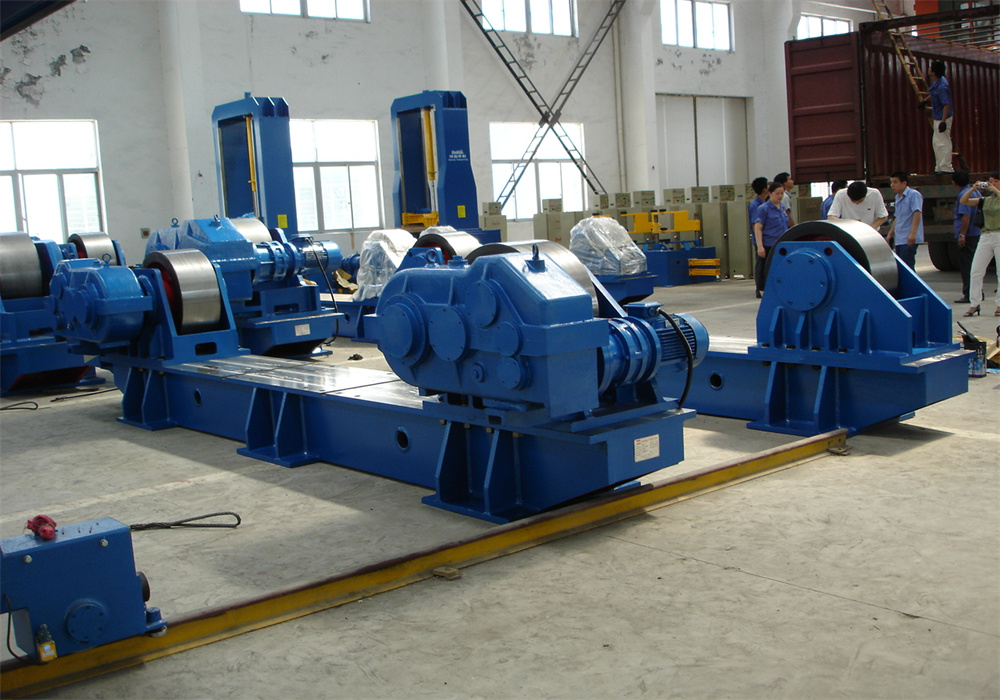

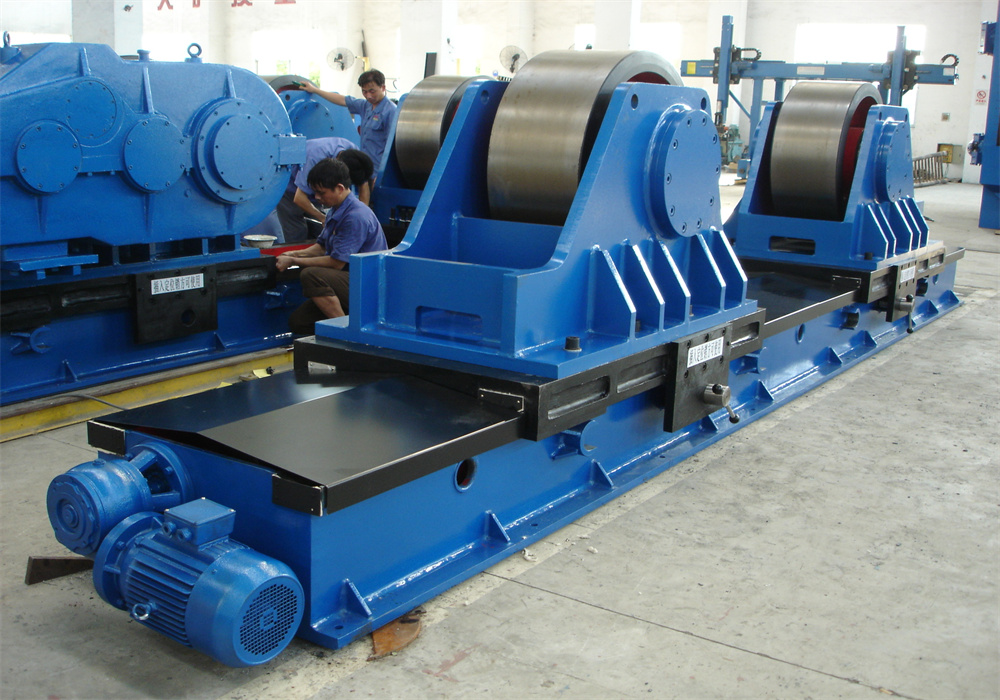

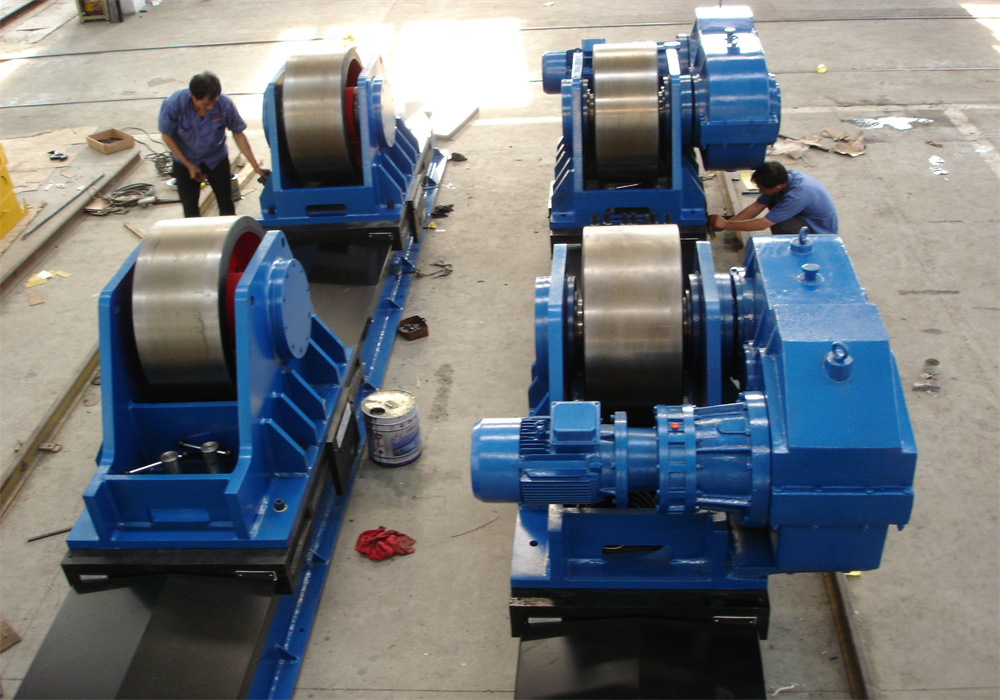

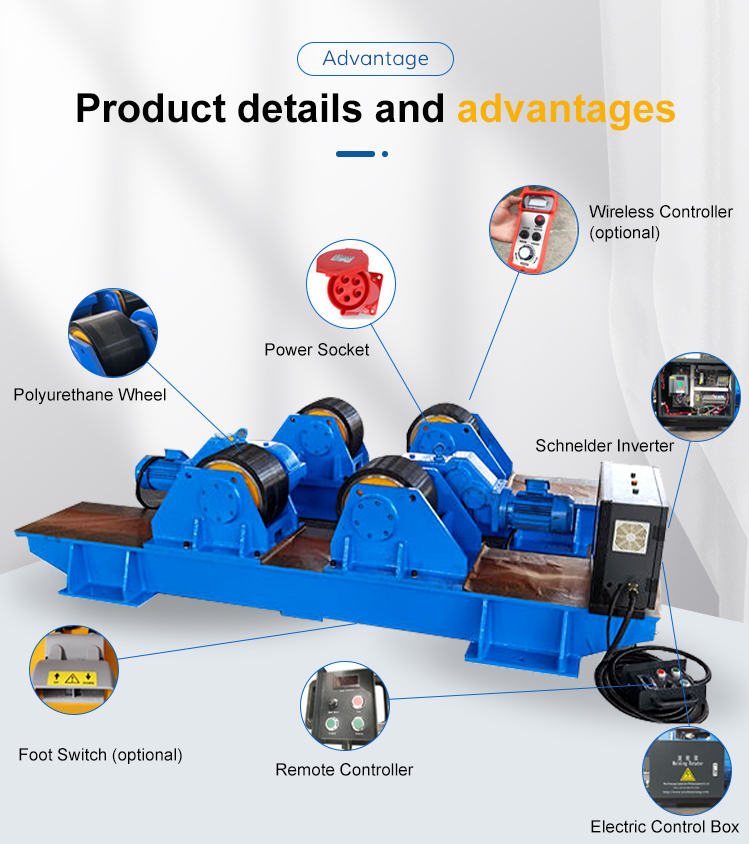

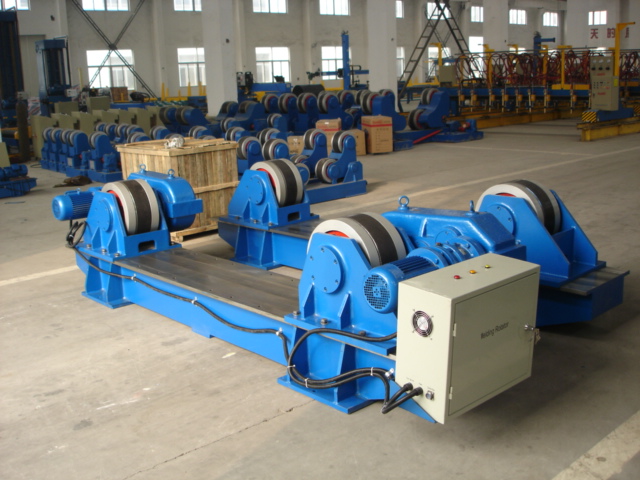

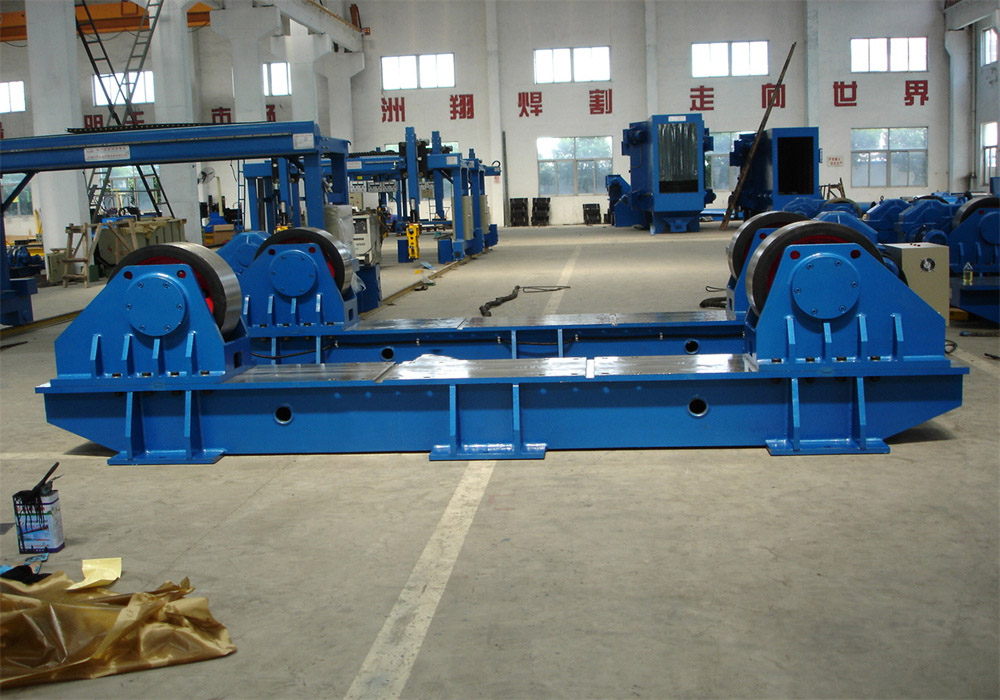

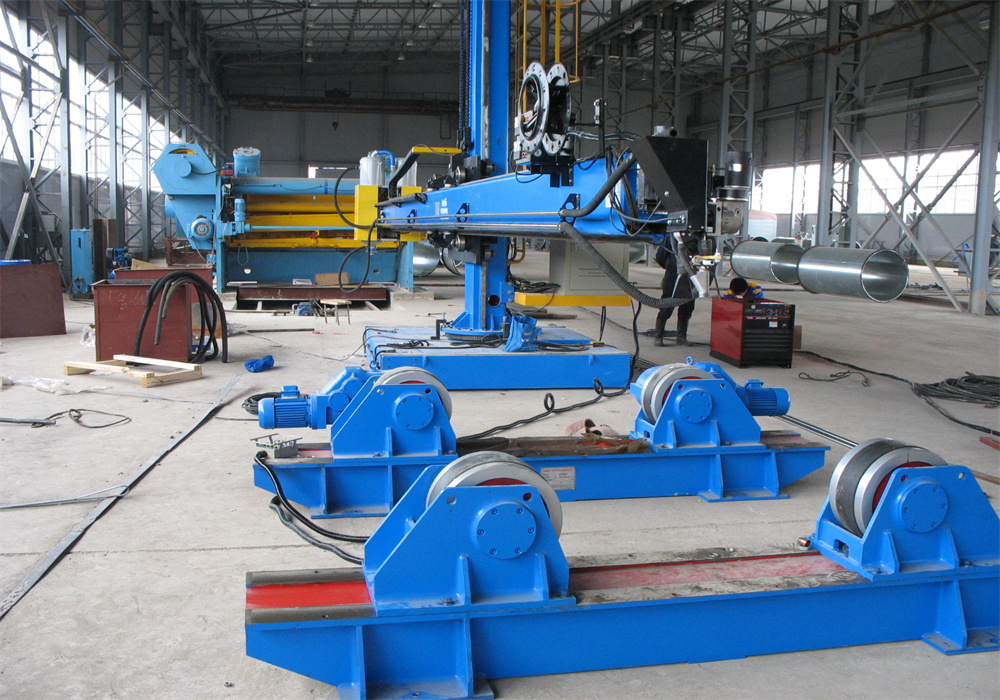

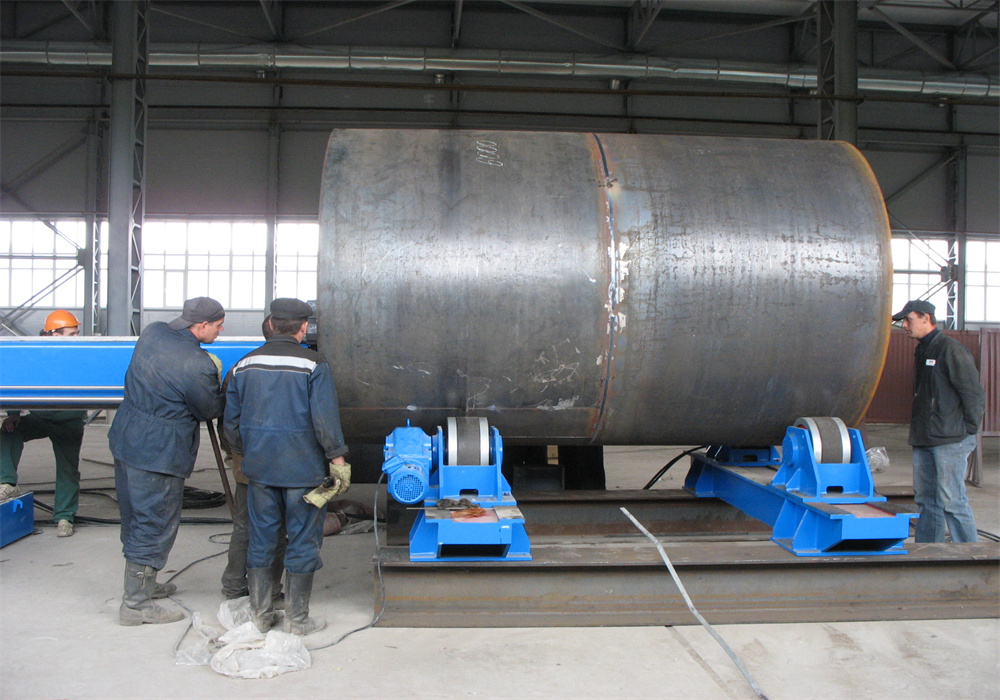

This adjustable welding rotator consists of lead screw adjustable type and bolt adjustable type. It is used for welding of round cylinders. By moving the roller groups according to different diameters of work-piece, the center distance can be adjusted to suit for the work-piece with diameters. The adjustable welding rotator consists of powered rotator, idle rotator, driving reducer system and control system etc.
1.The structure parts of the rotator has the annealing treatment after welding,which can ensure the long-term using performance and service life.

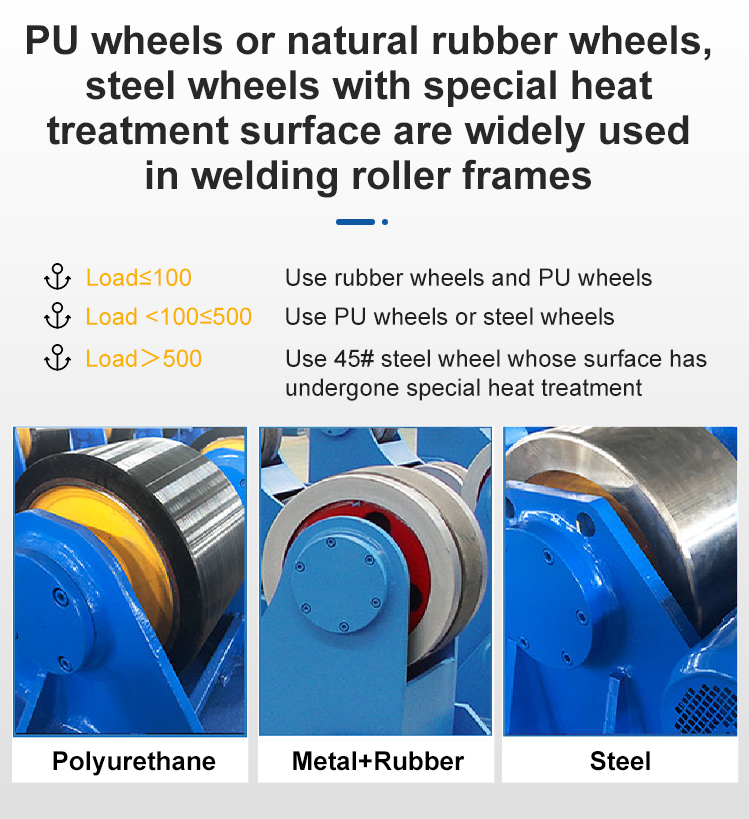

2.The rollers use rubber casting with abrasion resistance and long service life. The PU rollerand metal rolleralso can be customized according to users’ requirement.

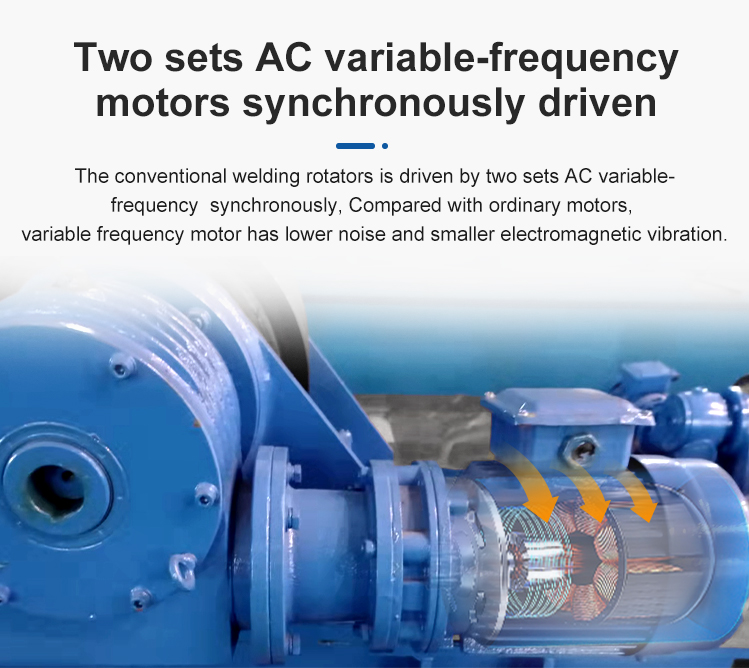

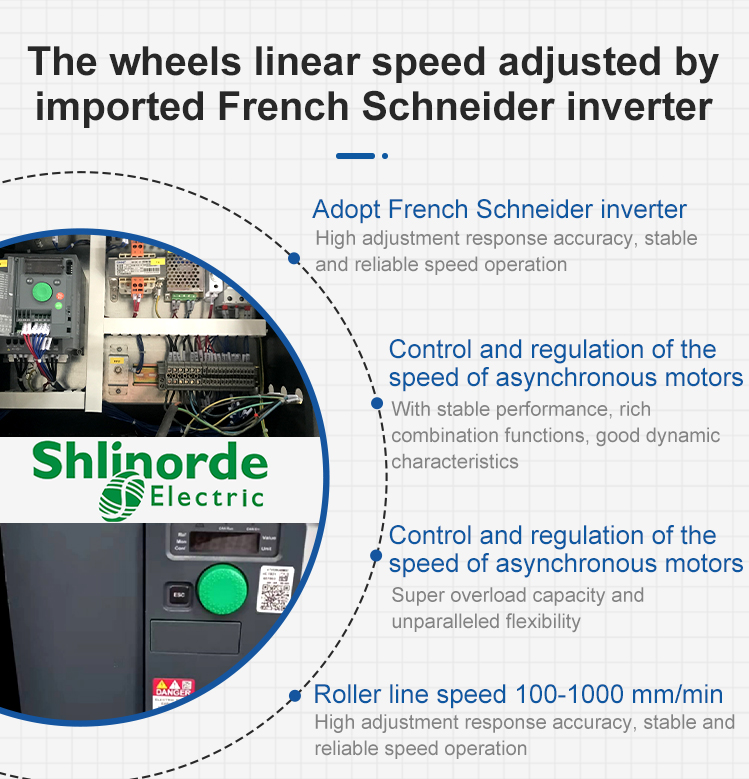

3.The rotator adopts double driving system. The driving motor adopts AC motor, driving system has the functions of voltage protection and overload protection.

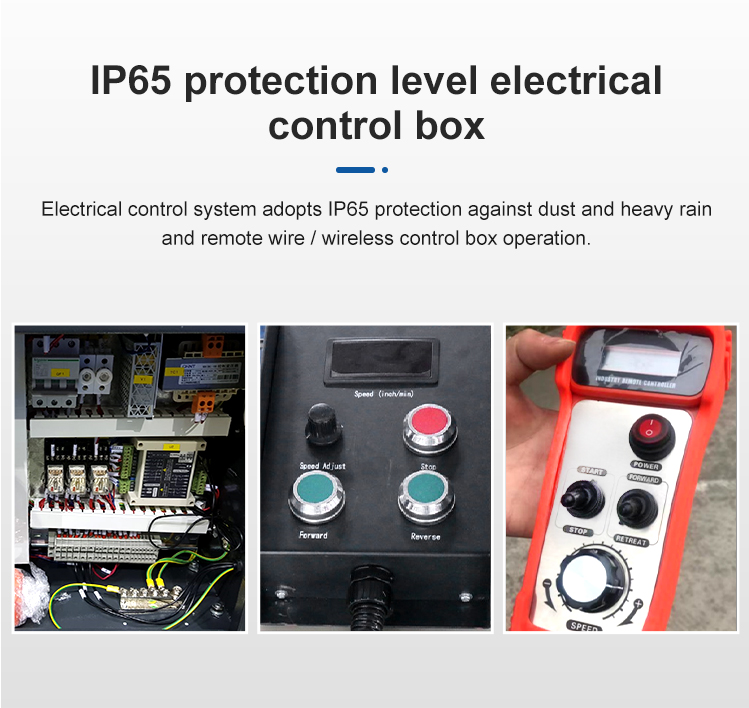

4.The electric control box and control panel is placed separately, which is convenient for operation.
Specifications:
|
Model |
Max. load weight-kg |
Range of suitable wrokpiece-mm |
Dia. and width of the wheel |
Roller linear speed-m/h |
Motor power-kw |
|
|
PU roller (mm) |
Metal roller |
|||||
|
GLHK-3 |
3000 |
φ250-φ1800 |
Φ200*140 |
|
6-60 |
2*0.25 |
|
GLHK-5 |
5000 |
φ250-φ2300 |
Φ250*140 |
|
6-60 |
2*0.37 |
|
GLHK-10 |
10000 |
φ320-φ2800 |
Φ300*170 |
|
6-60 |
2*0.55 |
|
GLHK-20 |
20000 |
φ500-φ3500 |
Φ350*180 |
|
6-60 |
2*1.1 |
|
GLHK-40 |
40000 |
φ600-φ4200 |
Φ400*200 |
|
6-60 |
2*1.5 |
|
GLHK-60 |
60000 |
φ750-φ4800 |
Φ450*220 |
|
6-60 |
2*2.2 |
|
GLHK-80 |
80000 |
φ850-φ5000 |
Φ500*240 |
|
6-60 |
2*3 |
|
GLHK-100 |
100000 |
φ1000-φ5500 |
Φ500*260 |
|
6-60 |
2*4 |
|
GLHK-160 |
160000 |
φ1100-φ6000 |
- |
Φ620*220 |
6-60 |
2*4 |
|
GLHK-250 |
250000 |
φ1200-φ7000 |
- |
Φ700*280 |
6-60 |
2*5.5 |
|
GLHK-500 |
500000 |
φ1500-φ8000 |
- |
Φ850*350 |
6-60 |
2*11 |
|
GLHK-630 |
630000 |
φ1500-φ9000 |
- |
Φ900*380 |
6-60 |
2*11 |
