H Beam Welding Robot
This set of robot welding workstations uses two robots to move multiple workstations on the same ground rail to weld H-shaped steel workpieces. Each robot is extended with an external axis (2.0KW) for the movement of the robot base, and each mobile base is equipped with a robot control cabinet, welding power supply, welding wire cylinder and other supporting devices. Each robot front end is equipped with a 3D visual camera, which can automatically correct trajectory deviations caused by workpiece assembly through shooting. The workstation is also equipped with offline programming software, which eliminates the tedious on-site teaching. The software contains a rich welding process package that basically covers the process parameters of H-beam welding

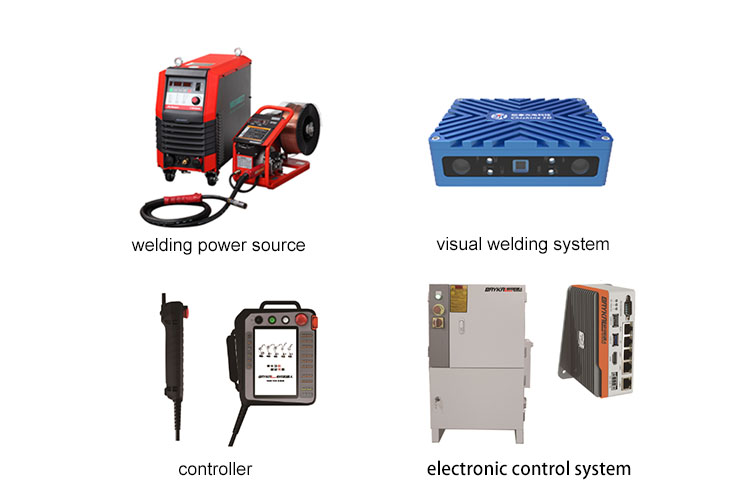

Components:
