Intelligent AGV Mobile Welding Robot Carts
Products Description

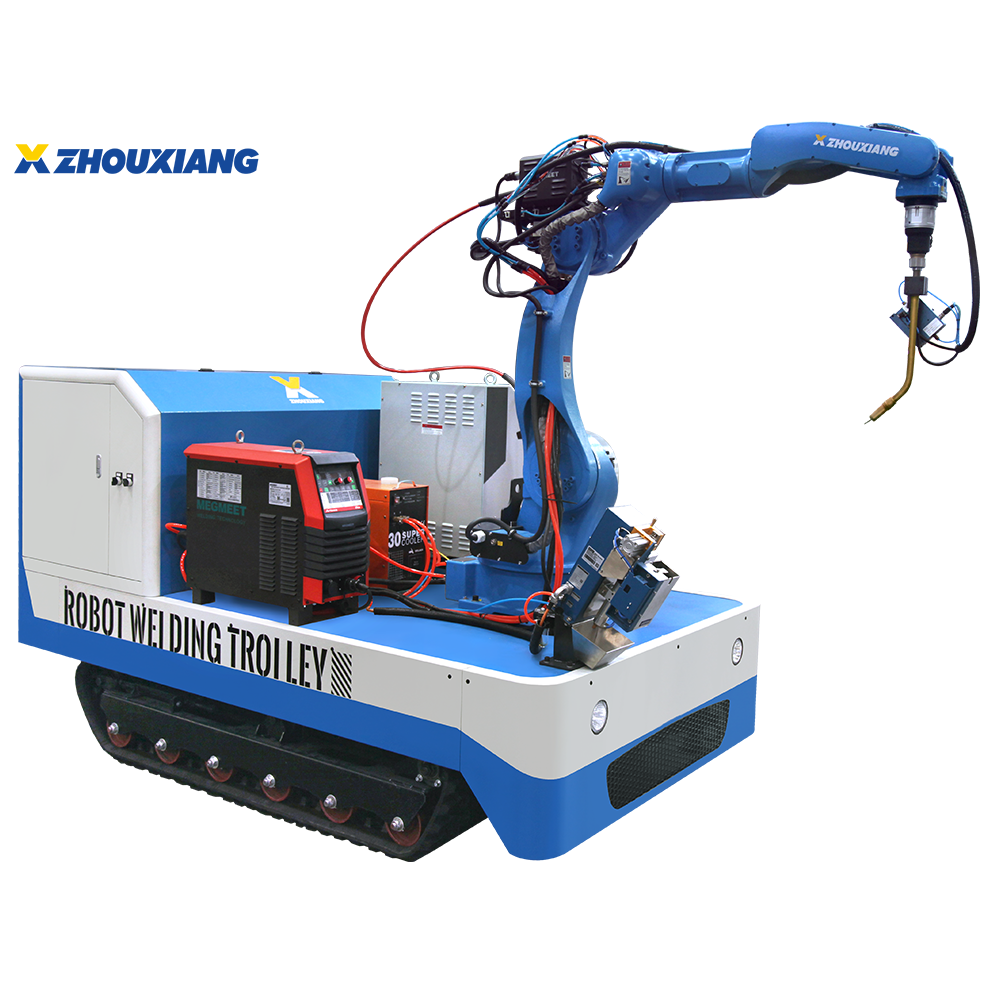

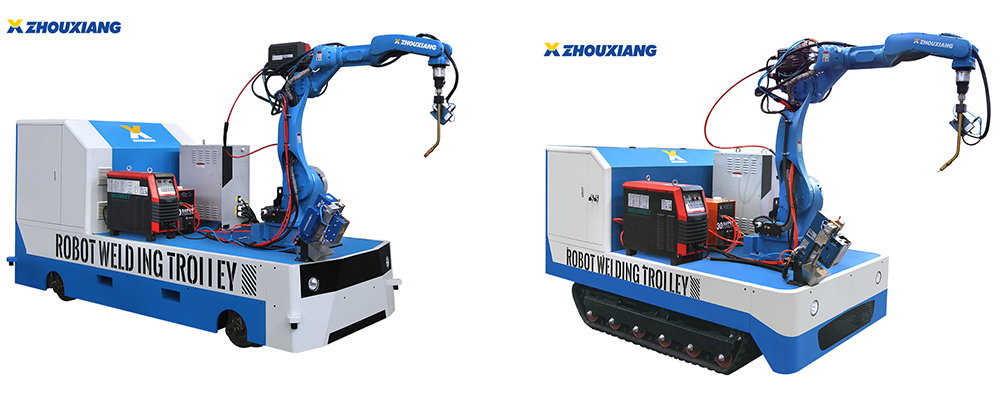

Performance characteristics Structure: Tracked AGV carts usually use chains or tracks as transmission devices, while wheeled AGV carts use wheels as moving parts. Applicable environment: Tracked AGV carts are suitable for various ground conditions, including uneven ground, muddy ground, etc. They can work in harsh environments such as factory workshops, warehouses, etc. Wheeled AGV carts are more suitable for driving on flat ground, such as offices, hospitals, etc.O Flexibility: Tracked AGVs have less flexibility and a larger turning radius, making them unsuitable for working in narrow spaces. Wheeled AGVs are more flexible and can move freely in narrow passages and spaces. Speed and efficiency: Generally speaking, wheeled AGVs are faster and more efficient. Tracked AGVs speed are slower but can carry heavier cargo.
Parameter
Total power
|
50KVA
|
Working power supply
|
3X380V 50Hz 3-phase 5-wire system 3P,380V,50Hz
|
Working power supply mode
|
Coll cable power supply
|
Machine weight
|
2500Kg
|
Dimension
|
3000mmX1500mmX2400mm
|
Robot model
|
CRP2010A
|
Welding power source
|
NBC500RP Plus Aotal NBC500RP Plus
|
Visual point cloud accuracy
|
0.1mm
|
Vision software
|
TracerStudio
|
Moving drive
|
Steering wheel type
|
Operation type
|
Remote control
|
Moving speed
|
2.2km/h
|
Environment temperature
|
0℃-+45℃
|
Relative humidity
|
≤90%RH(non-condensing)
|
