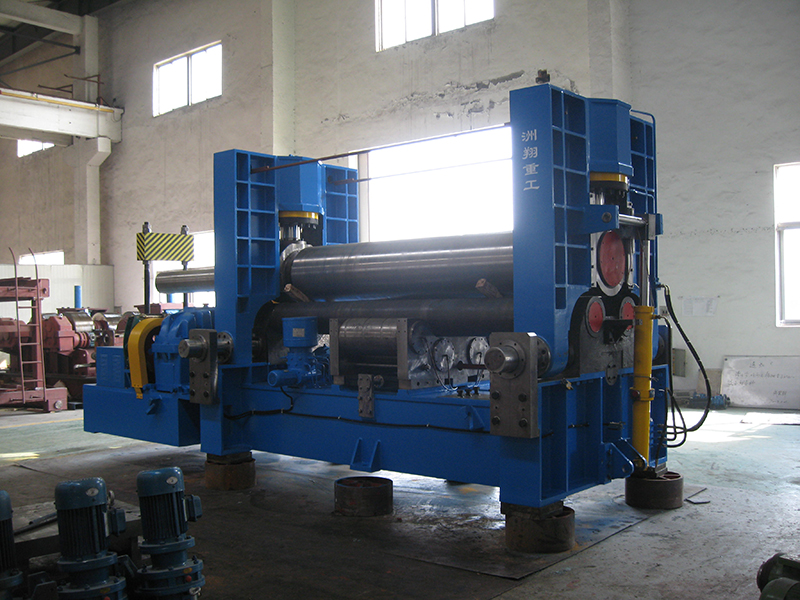

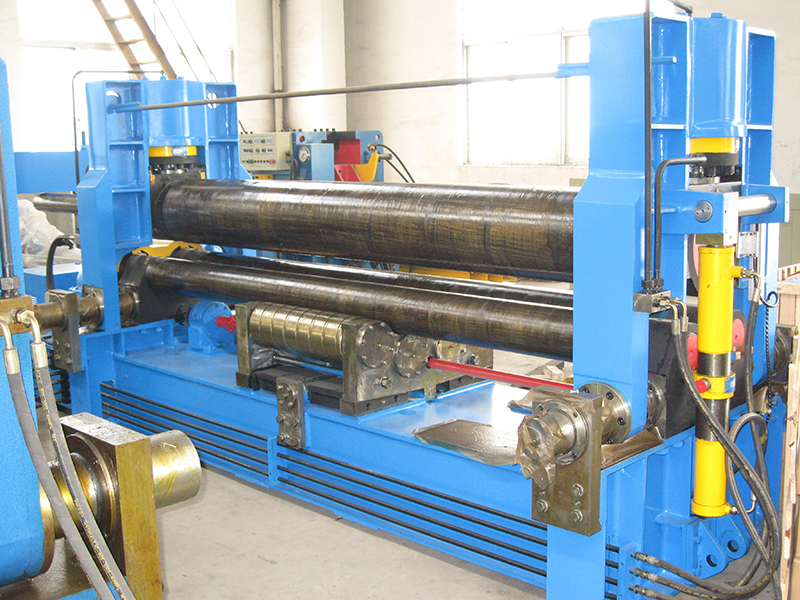

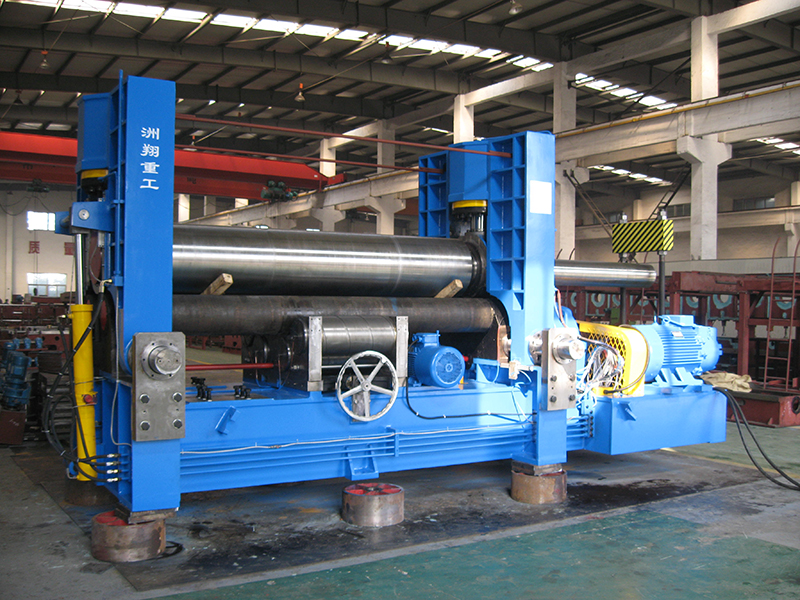

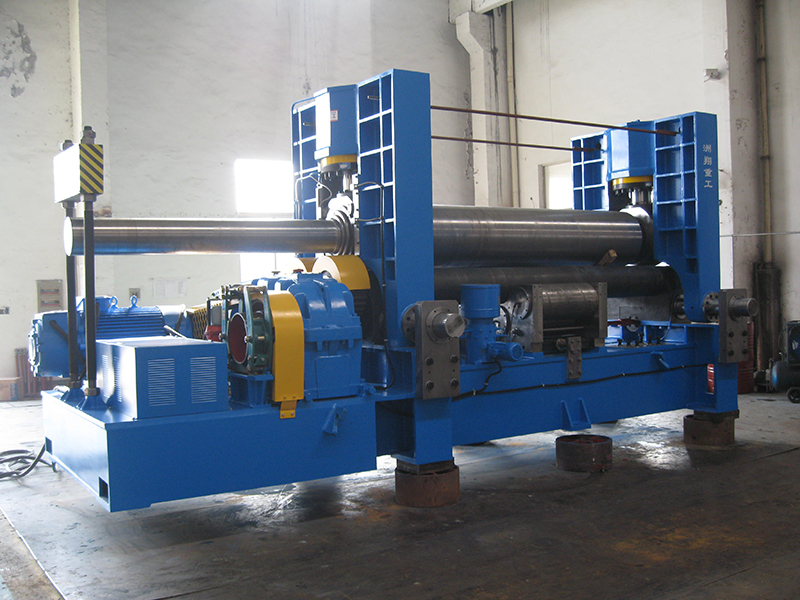

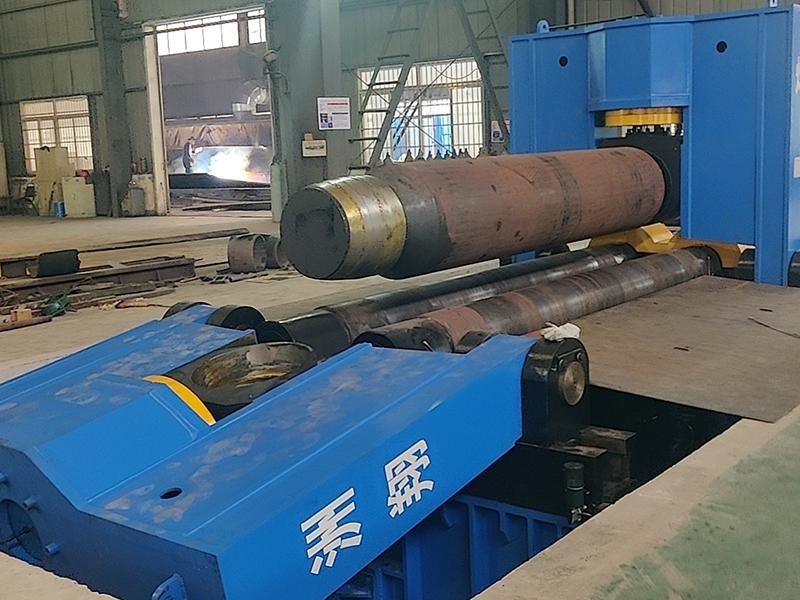

Symmetrical Mechanical 3-roller Plate Rolling Machine
The structure of this machine is designed as a symmetrical up - adjusting 3-roller plate-rolling form. Through the machine, metal plate can be rolled into the round shapes within its specified ranges. The two lower rollers are driving ones and the upper is an idler one. Upper roller do vertical elevating moving at the center position of two lower rollers, elevating of upper roller is realized through motor, speed reducer, worm gear and worm. This machine is widely used in ship building, boilers, aviation, hydroelectricity, chemical industry, metal structure, machine manufacture and other industries.
1.Full mechanical form, safe and reliable with small failure rate.
2.It’s operation is easy, with wide application range.
3.The main parts, upper and lower rollers, both adopt high quality carbon steel; the rollers adopt solid forging with good comprehensive mechanical performance, good core tenacityand high surface hardness
Specifications:
|
Model |
Max thickness (mm) |
Max width (mm) |
Yield limit (MPa) |
Min rolling Dia. (mm) |
Rolling speed (m/min) |
Main motor power (Kw) |
|
W11-6×2000 |
6 |
2000 |
245 |
380 |
5.5 |
5.5 |
|
W11-8×2000 |
8 |
2000 |
245 |
450 |
5.6 |
7.5 |
|
W11-8×2500 |
8 |
2500 |
245 |
600 |
5.5 |
7.5 |
|
W11-12×2000 |
12 |
2000 |
245 |
600 |
5.5 |
7.5 |
|
W11-12×2500 |
12 |
2500 |
245 |
700 |
5.8 |
11 |
|
W11-16×2000 |
16 |
2000 |
245 |
650 |
5.8 |
11 |
|
W11-12×4000 |
12 |
4000 |
245 |
900 |
5.5 |
22 |
|
Above are our standard model, it can be designed and manufactured according to customer’s request. |
||||||
